Shelving System

Aluminum pillars. Open shelves. Any wall, any height.

The Shelving System is built on a single 38 × 80 mm supporting aluminum pillar. Fixed floor to wall, floor to ceiling or wall to wall, it carries board, glass and sloped shelves, a clothes rail and full cabinet bodies without visible brackets.

Profiles are supplied in natural aluminium C-0 and mat black anodized C-35. Every construction element comes with a concealing profile on the outer face, so fixings disappear once the system is installed.

Shelf sets are dimensioned from one number: the internal spacing of the pillars, X. Board, glass and tube lengths follow from it, so planning a run takes a tape measure and one table.

One pillar, every application

The supporting pillar is the only structural part. It stands between floor and ceiling in a walk-in wardrobe, hangs from wall to wall over a kitchen worktop or braces a low sideboard against the floor. Shelves, clothes rail and cabinet bodies clip into the same profile.

Board, glass or a full cabinet

Shelf sets take 18 or 28 mm board, 8 or 10 mm glass and 30° sloped shelves for shoes and display. The cabinet fixing set hangs a body up to 900 mm wide and 50 kg between two pillars, with no visible bracket.

Two finishes, concealed fixings

Natural aluminium C-0 and mat black C-35 are anodized in-house, so pillars, shelf sets and the Ø22 clothes rail match across an order. A concealing profile snaps over the outer face of each construction element, a plug closes the pillar end and C-30S feet level the system on uneven floors.

Construction elements

Three ways to fix the pillar

Choose the element by what the room offers. Each is available as an external version with the concealing profile (marked *) or an internal version for use inside a cabinet body.

Floor to wall

Max. height	3500 mm
Depth	190 – 350 mm
Shelf load	25 kg
External / internal	038 003 05* / 038 001 05

Floor to ceiling

Max. height	3500 mm
Depth	190 – 350 mm
Shelf load	25 kg
External / internal	038 014 05* / 038 015 05

Wall to wall

Max. height	1500 mm
Depth	190 – 350 mm
Shelf load	25 kg
External / internal	038 004 05* / 038 002 05

Designing shelves

Measure X once

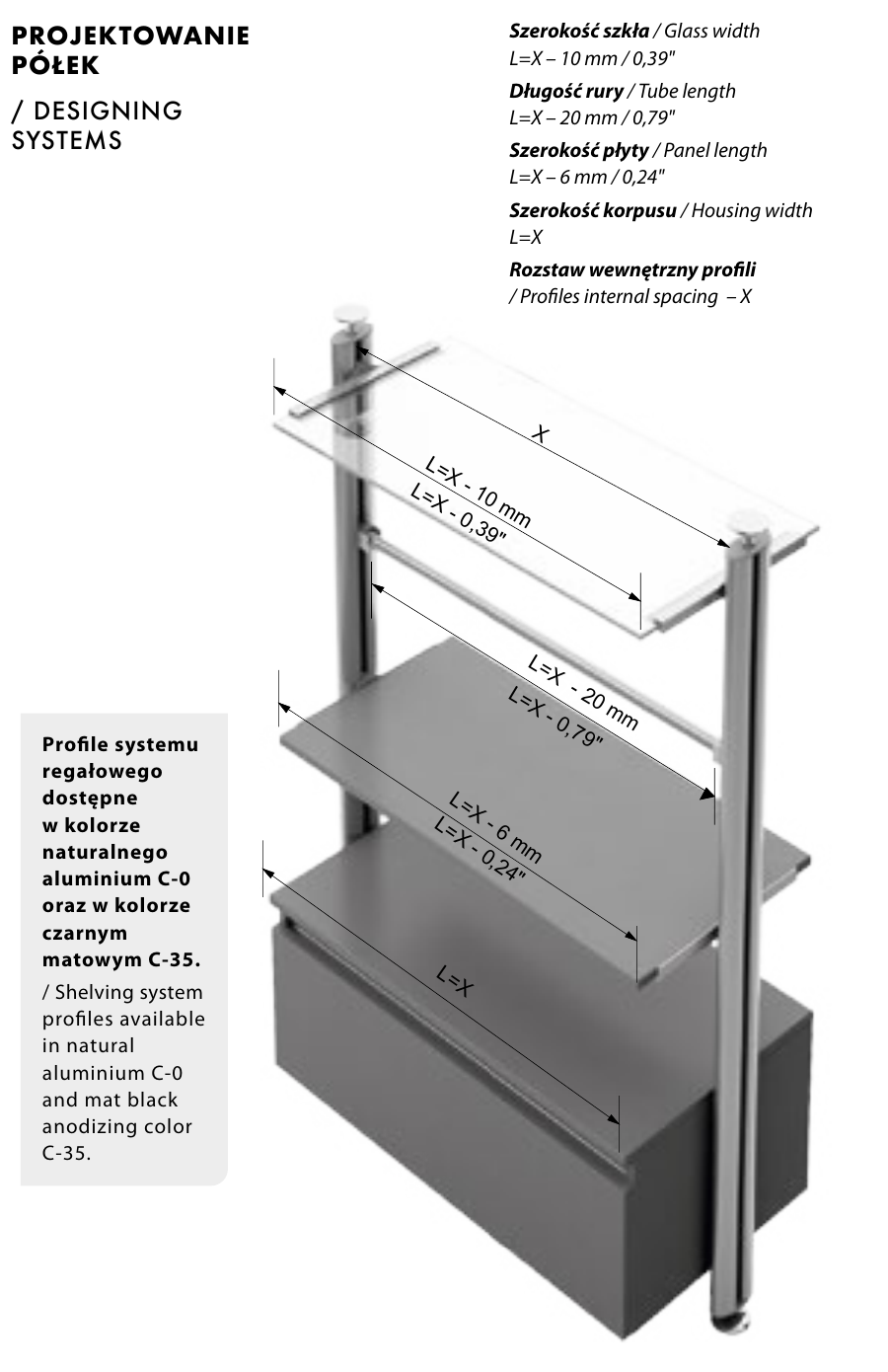

X is the internal spacing between two pillars. Everything that spans the gap is cut from it.

Housing width	L = X
Panel length (board shelf)	L = X − 6 mm
Glass width	L = X − 10 mm
Tube length (clothes rail)	L = X − 20 mm

Imperial: −0.24″, −0.39″, −0.79″ respectively. X is the profiles’ internal spacing.

Natural aluminium C-0

Mat black C-35

Shelving system profiles are available in natural aluminium C-0 and mat black anodized C-35.

Supporting pillar

38 × 80 mm section

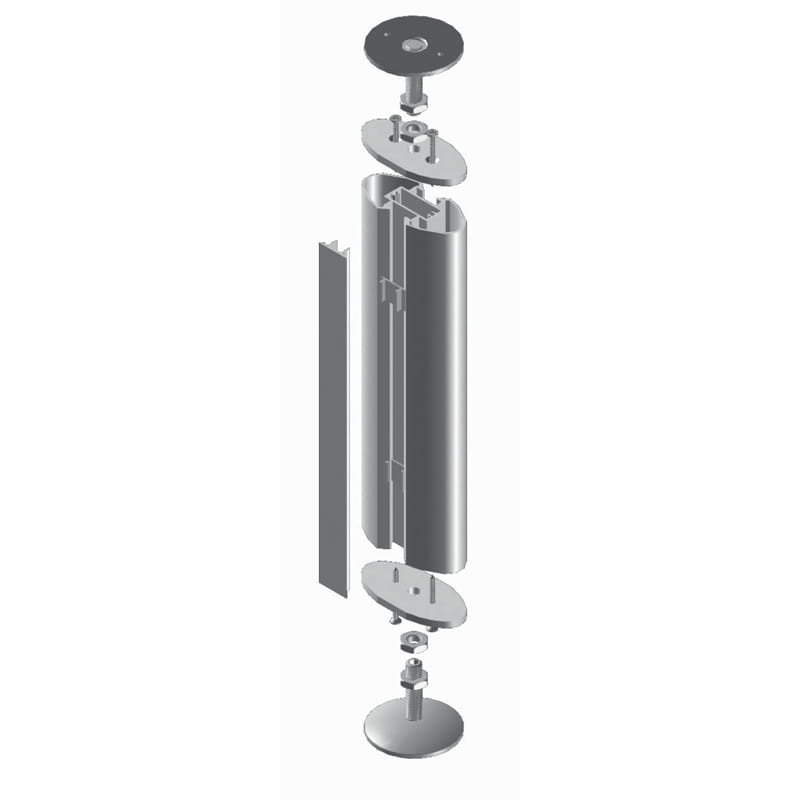

Construction profile, supporting pillar	035 001 05 · 036 010 05

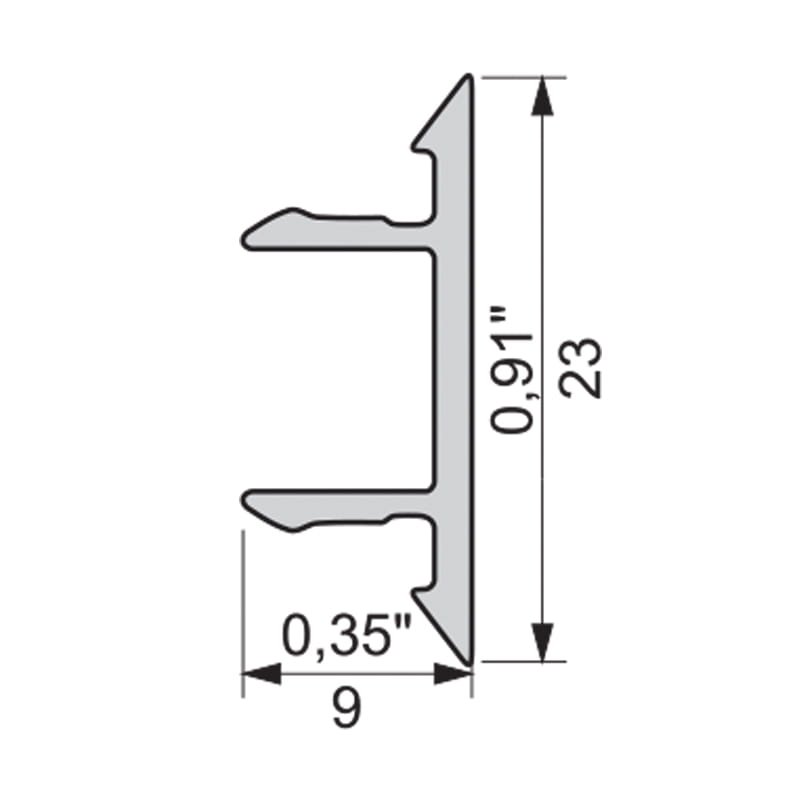

Concealing profile	035 002 05
Plug	010 003
Height adjuster C-30S, with holes	036 014 15
Height adjuster C-30S, without holes	036 013 15
Wall thickness / thread	2.2 mm · M10

Applications

Where the system is used

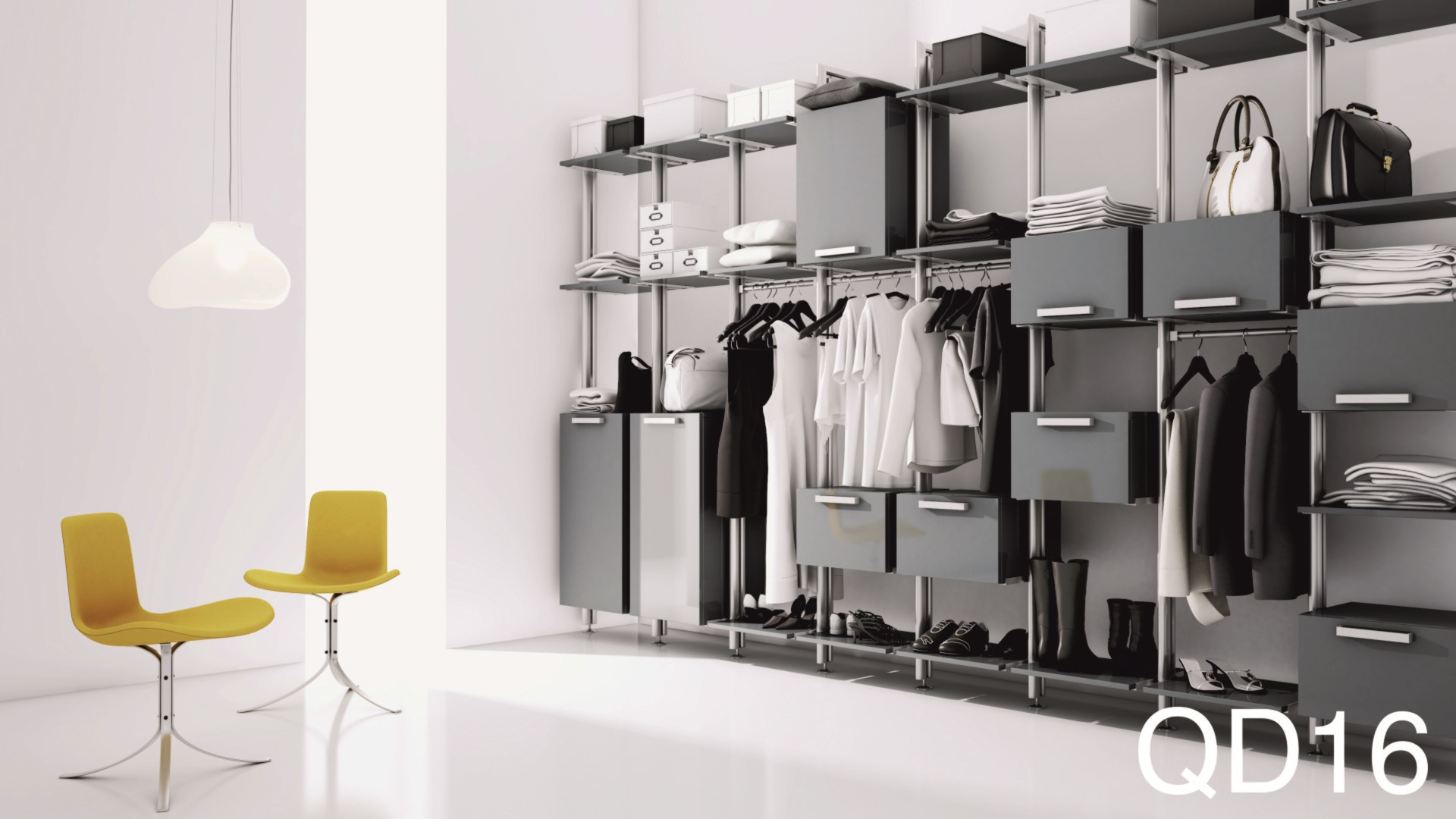

SHELVING SYSTEM IN THE WALK-IN WARDROBE — Floor-to-ceiling pillars up to 3500 mm carry the Ø22 clothes rail, 30° sloped shoe shelves and graphite cabinet bodies.

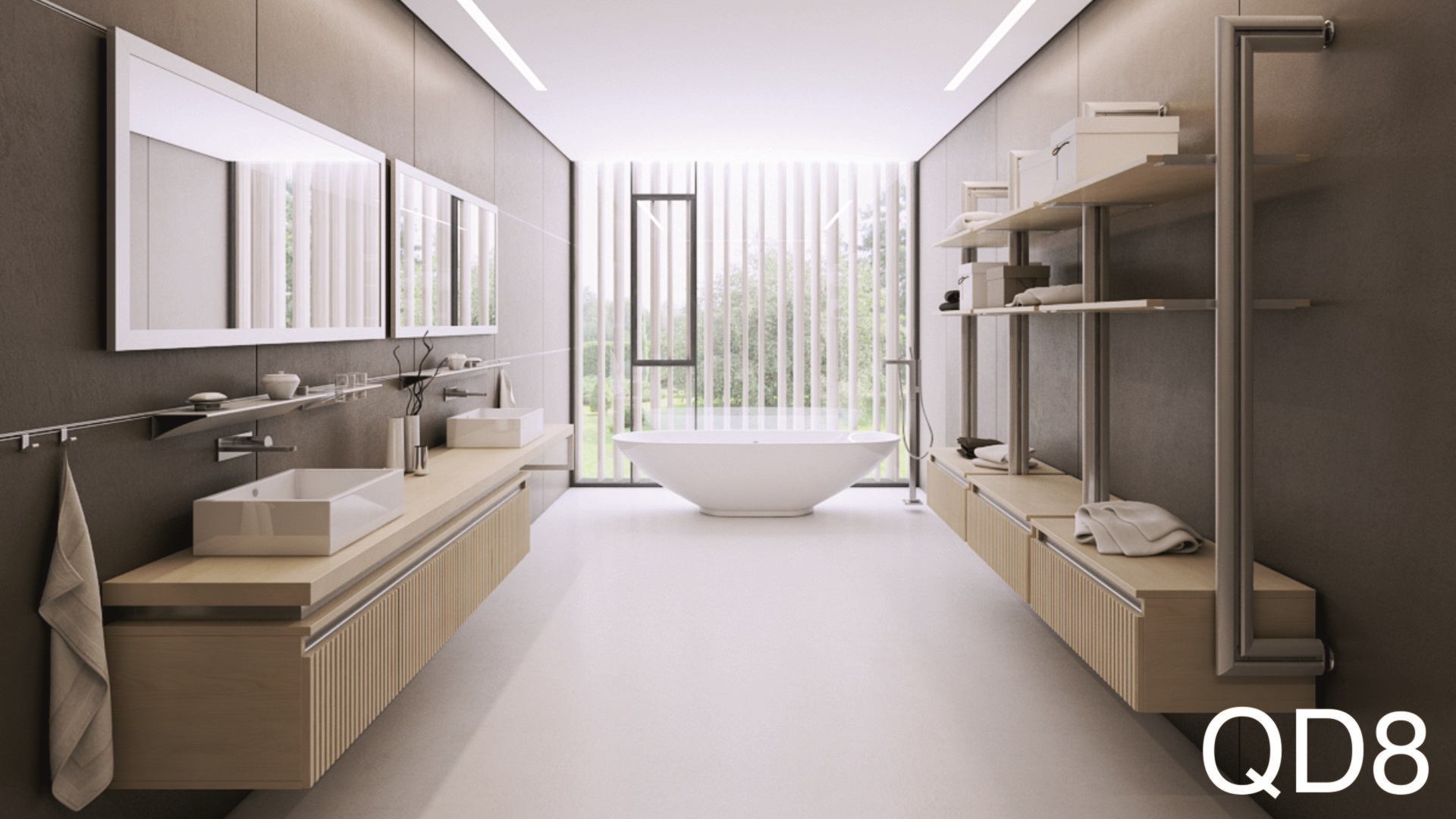

SHELVING SYSTEM IN THE BATHROOM — Anodized aluminium and glass shelves tolerate humidity. In QD8 the pillars carry towel storage beside a floating vanity.

SHELVING SYSTEM IN MAT BLACK — C-35 pillars and glass shelves frame a floating washbasin cabinet. The same components as QD8, a different mood.

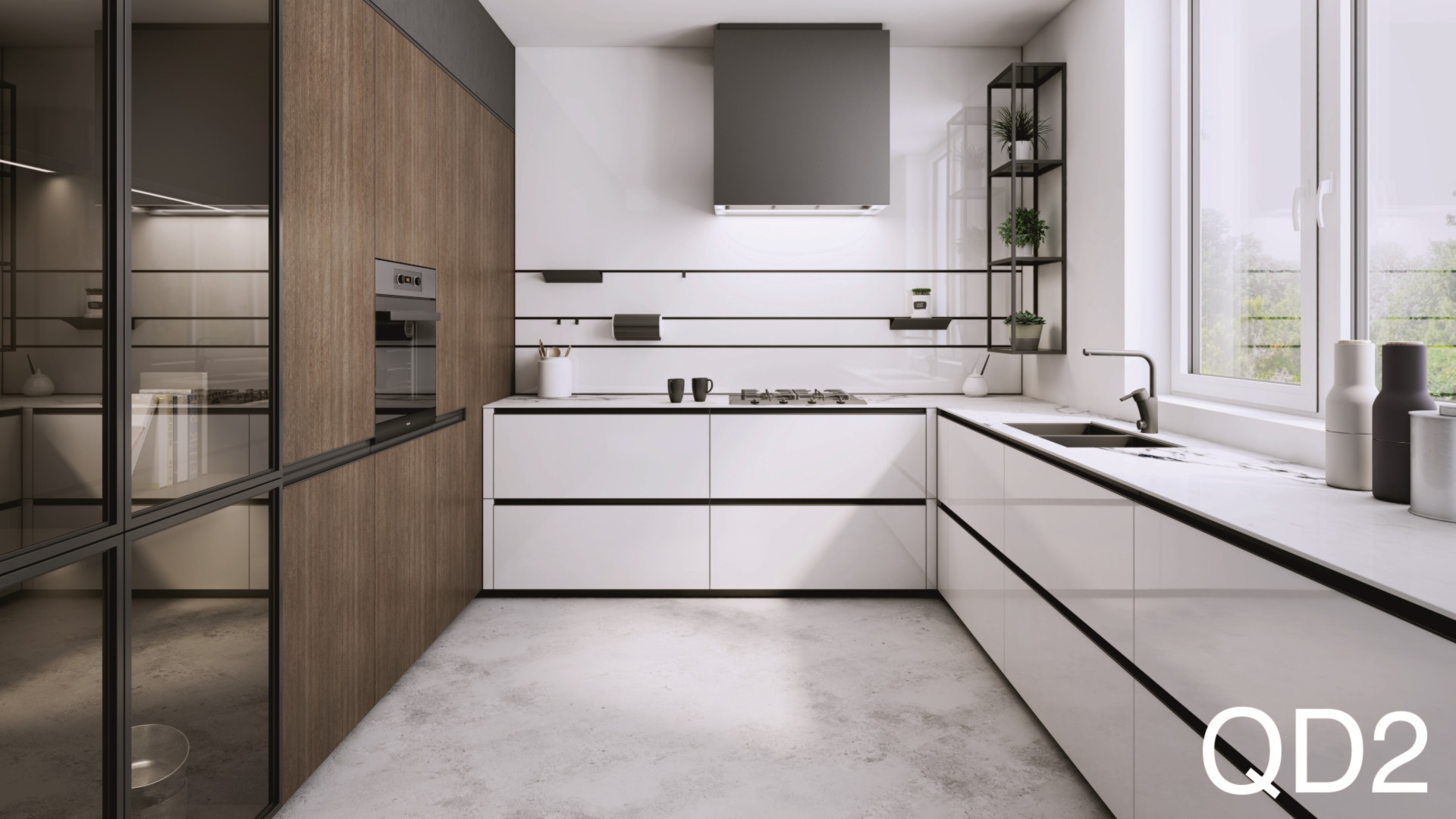

SHELVING SYSTEM ON THE KITCHEN WALL — Wall-to-wall pillars over a run of base cabinets hold board and glass shelves for everyday tableware.

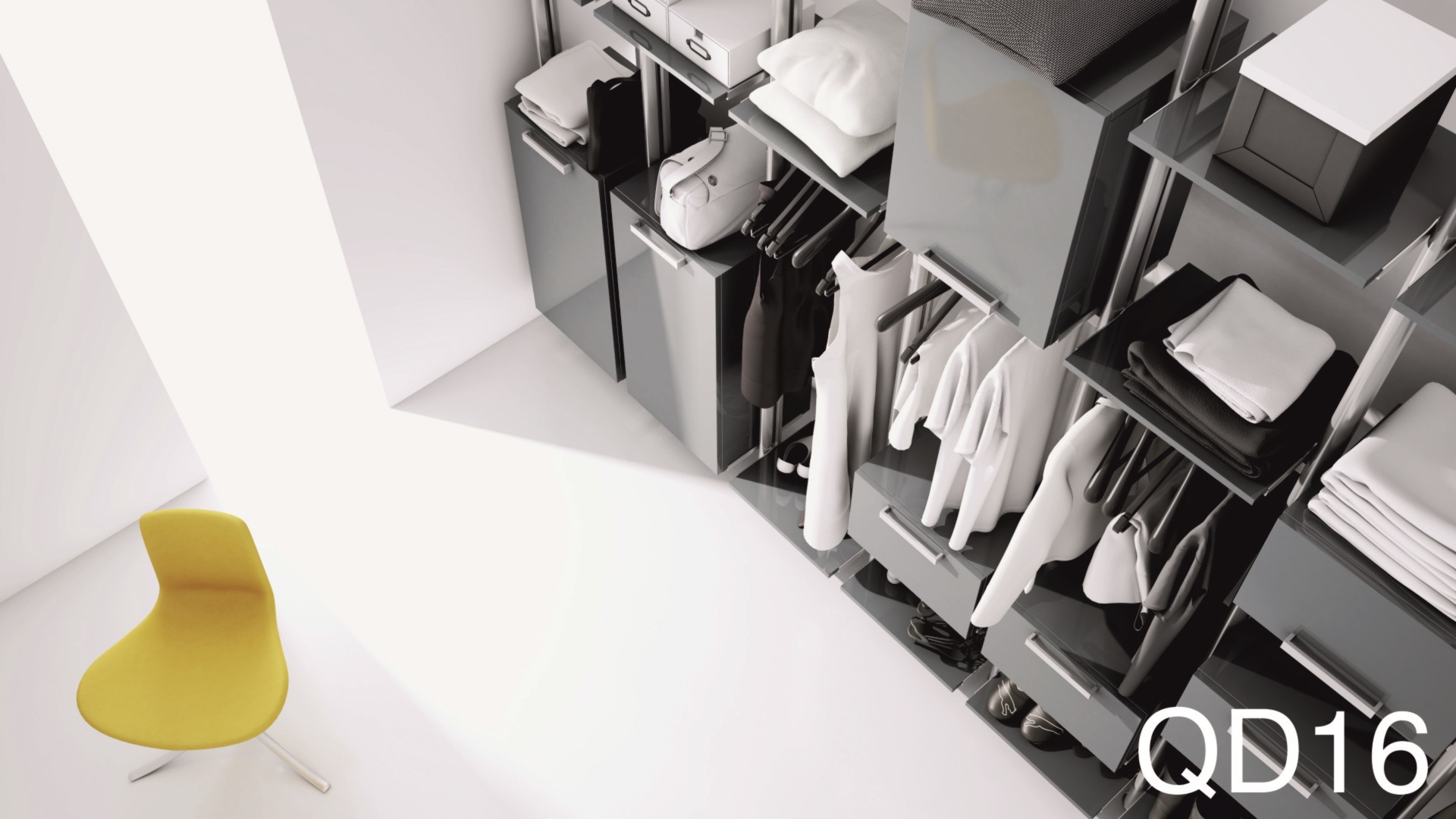

SHOP AND OFFICE STORAGE — Cabinet fixings hold 50 kg bodies up to 900 mm wide, so the same pillars build display walls and back-office storage.

Programme

Shelving System components

Component	Group	Length	Max. load	Catalogue no.

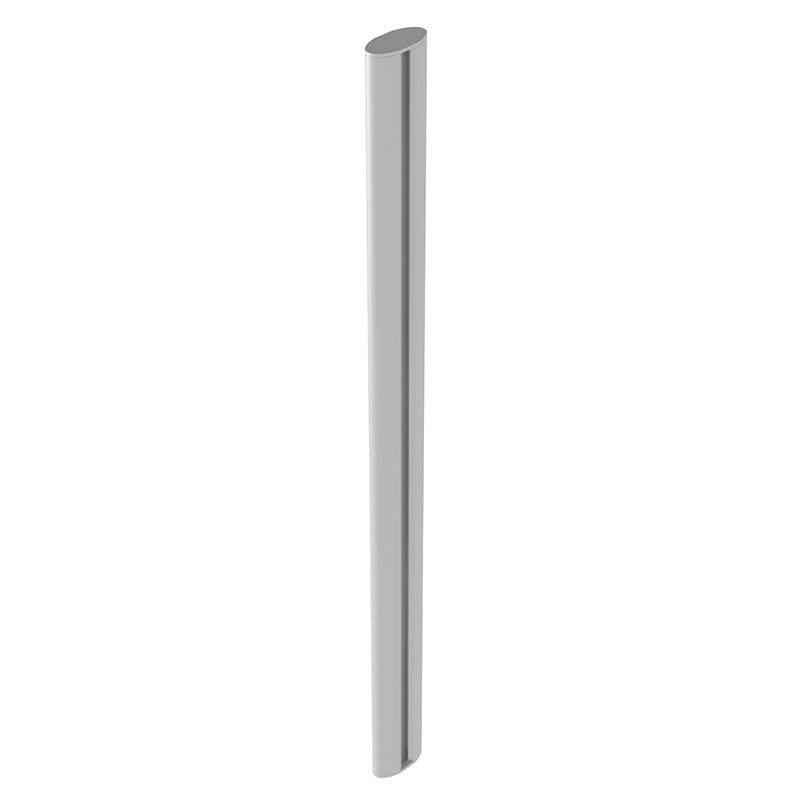

Construction profile, supporting pillar 38 × 80 mm section, 2.2 mm wall	Pillar	cut to length	—	035 001 05 · 036 010 05	Quick RFQ
Concealing profile Snaps over the outer face of construction elements	Pillar	cut to length	—	035 002 05	Quick RFQ
Plug Closes the pillar end	Pillar	—	—	010 003	Quick RFQ

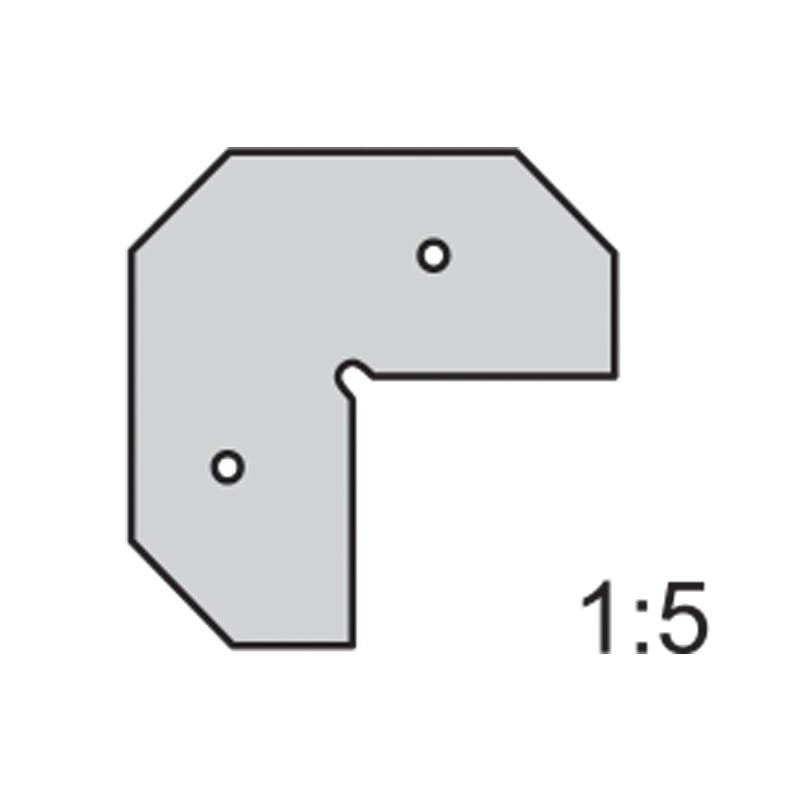

Cleat Joins pillar to construction element	Pillar	—	—	—	Quick RFQ

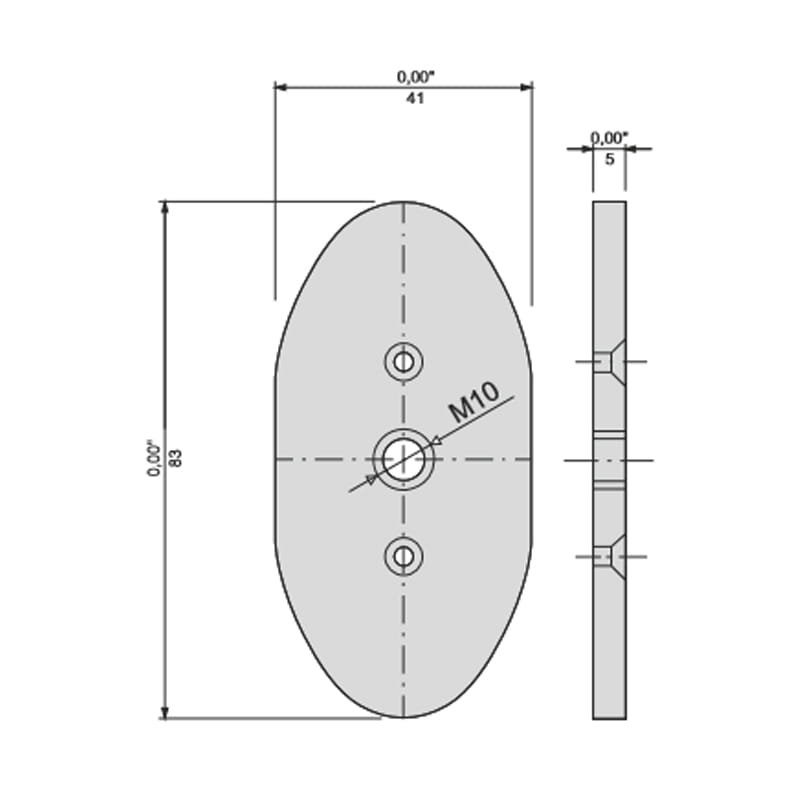

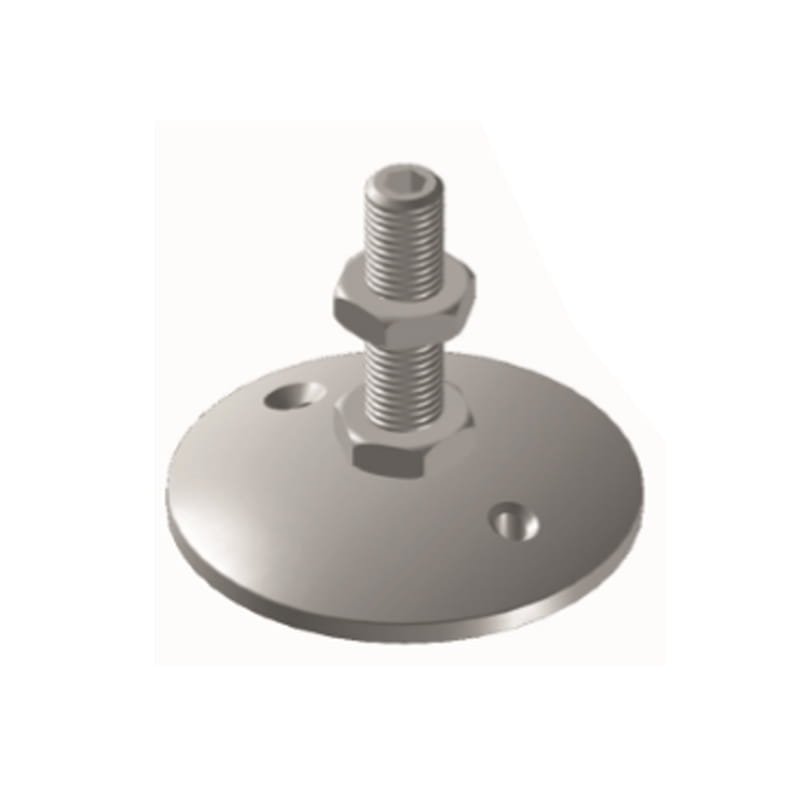

Height adjuster C-30S with holes M10 thread	Pillar	—	—	036 014 15	Quick RFQ

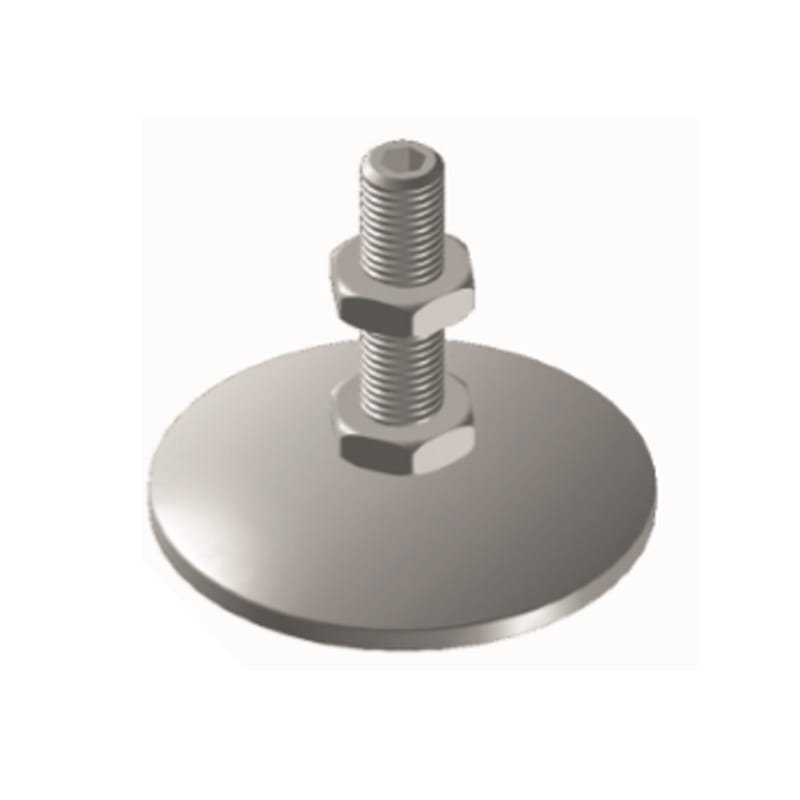

Height adjuster C-30S without holes M10 thread	Pillar	—	—	036 013 15	Quick RFQ

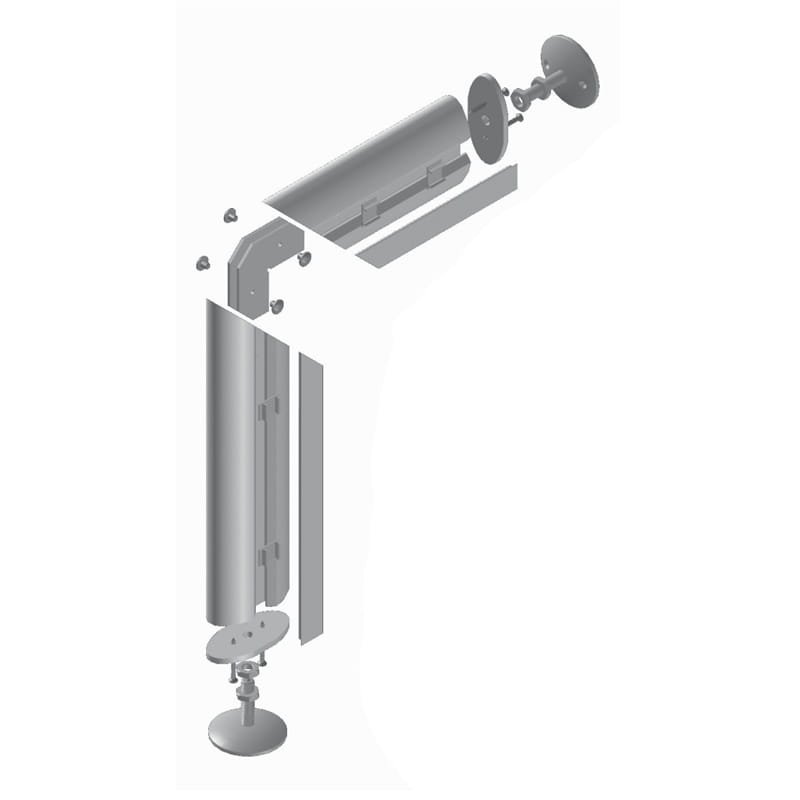

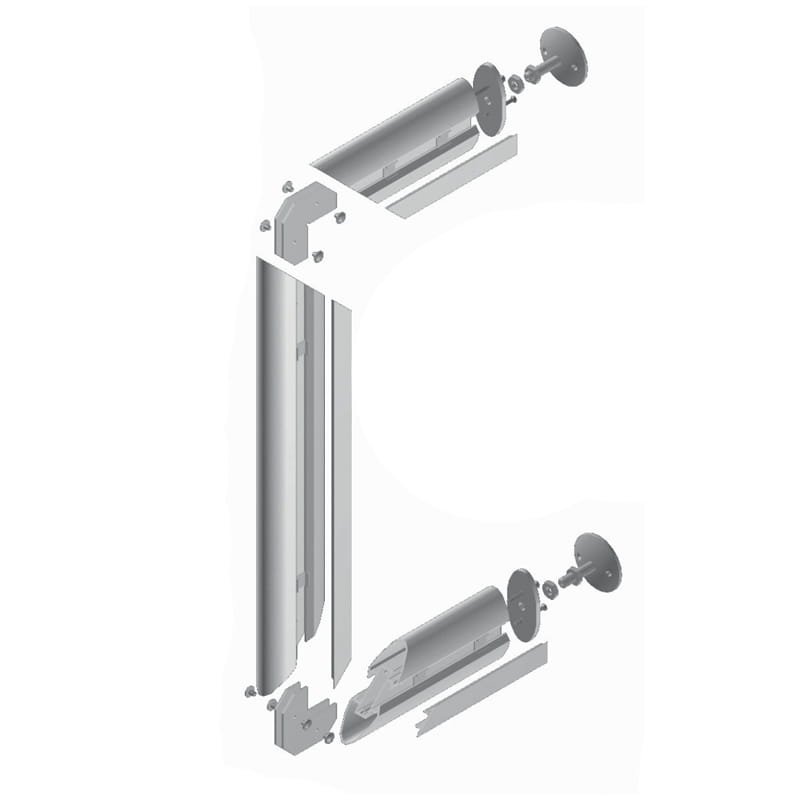

Construction element floor to wall Depth 190 – 350 mm	Construction elements	height to 3500 mm	25 kg / shelf	038 003 05* · 038 001 05	Quick RFQ
Construction element floor to ceiling Depth 190 – 350 mm	Construction elements	height to 3500 mm	25 kg / shelf	038 014 05* · 038 015 05	Quick RFQ
Construction element wall to wall Depth 190 – 350 mm	Construction elements	height to 1500 mm	25 kg / shelf	038 004 05* · 038 002 05	Quick RFQ

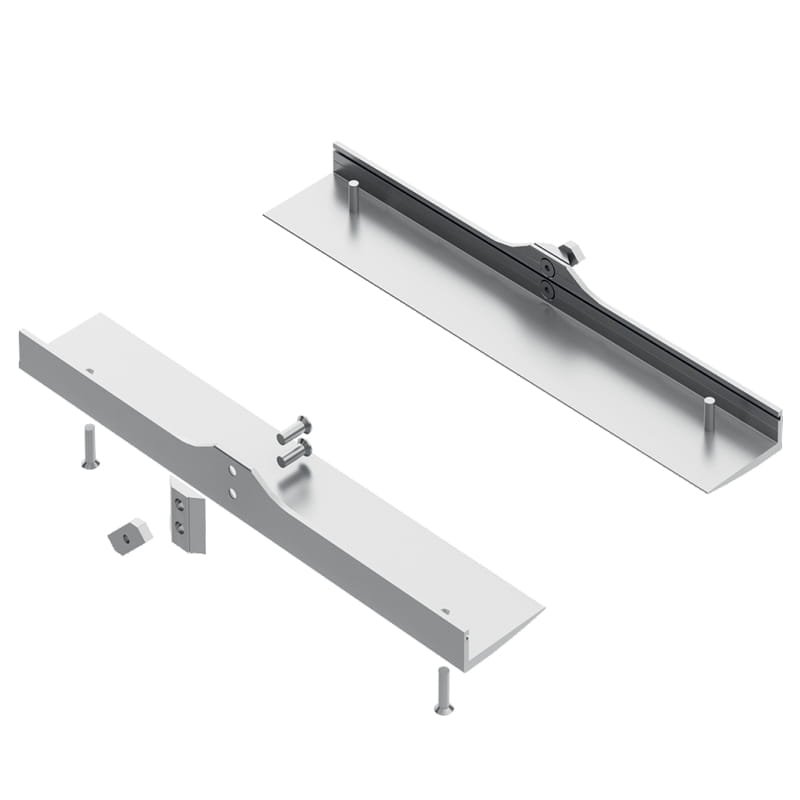

A set for 18 mm straight shelf Panel length X − 6 mm	Shelf sets	L = 300 mm	25 kg	038 016 05	Quick RFQ

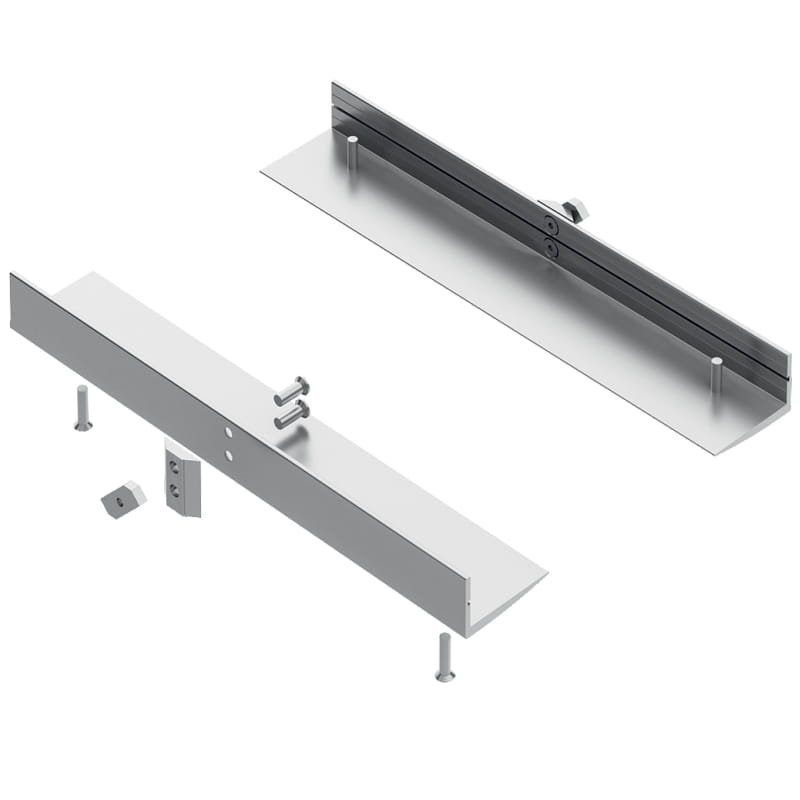

A set for 28 mm straight shelf Panel length X − 6 mm	Shelf sets	L = 300 mm	25 kg	038 005 05	Quick RFQ

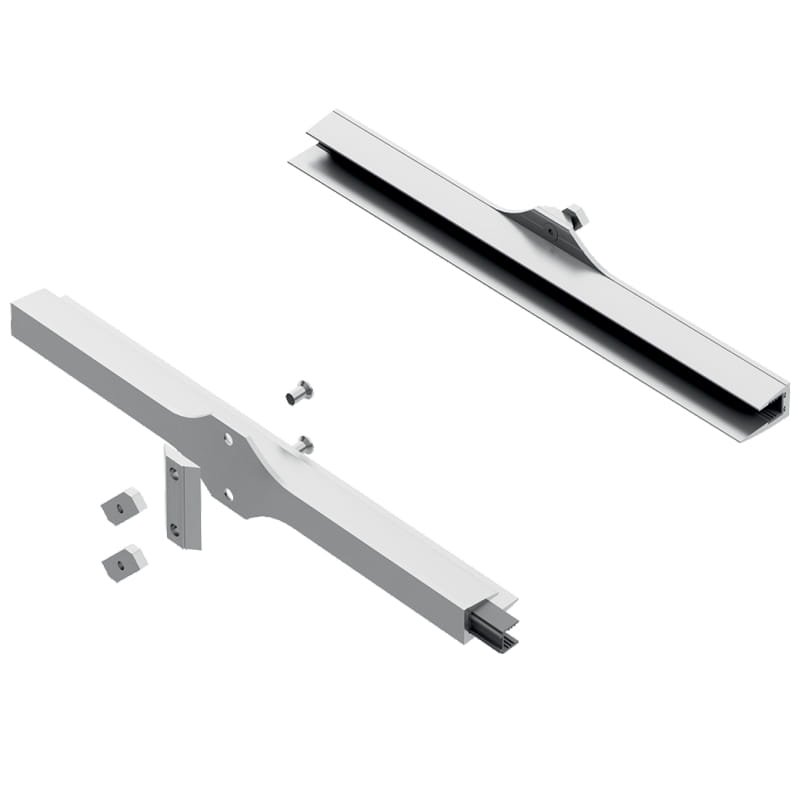

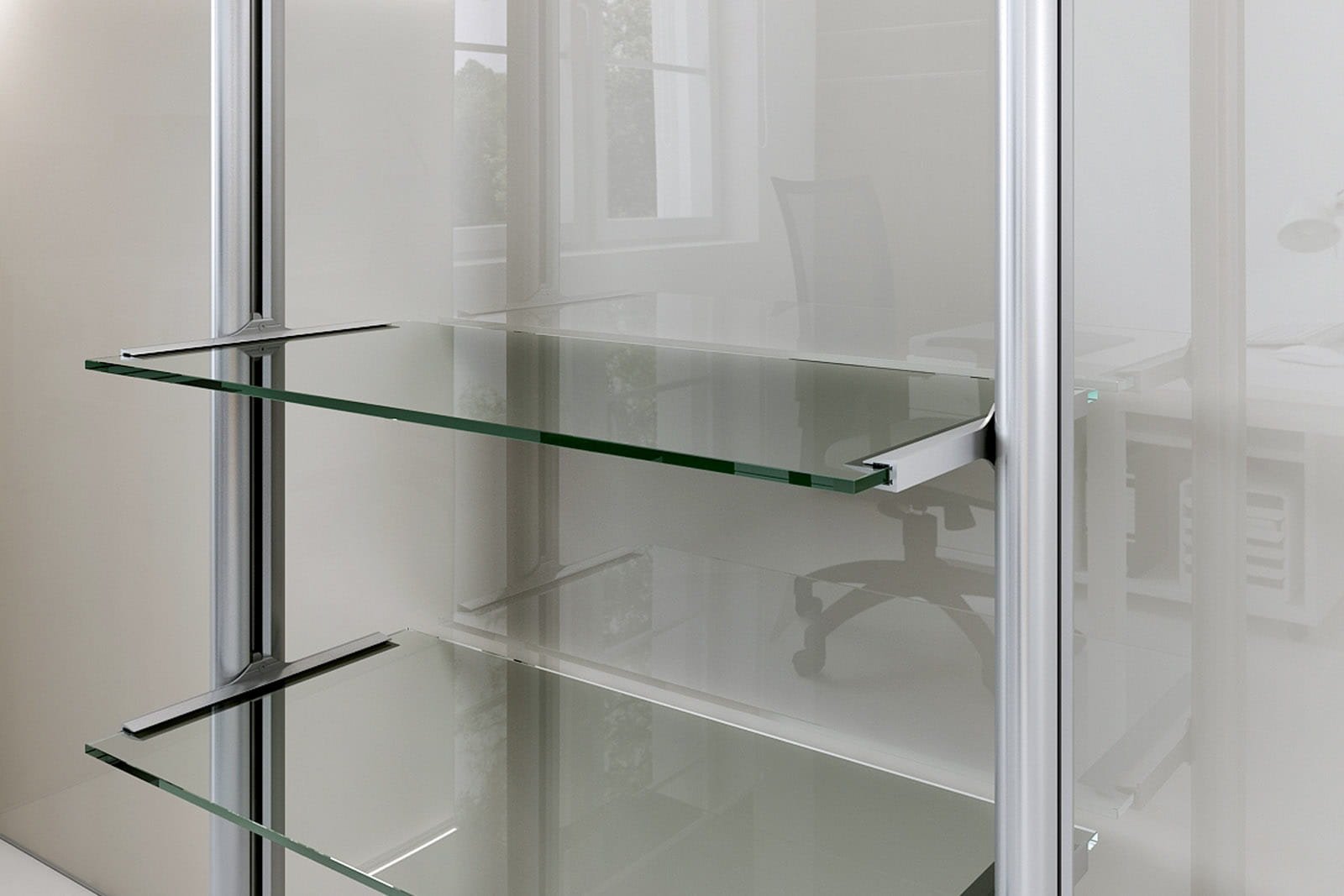

A set for 8 mm glass shelf Glass width X − 10 mm	Shelf sets	L = 300 mm	25 kg	038 006 05	Quick RFQ
A set for 10 mm glass shelf Glass width X − 10 mm	Shelf sets	L = 320 mm	25 kg	038 007 05	Quick RFQ

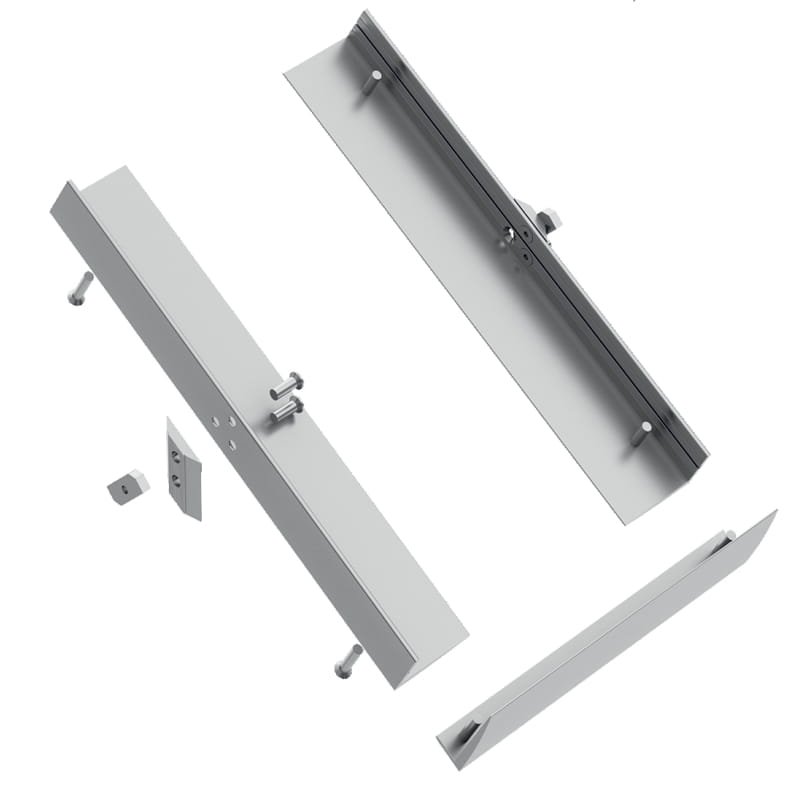

A set for 18 mm shelf at a 30° Sloped shoe / display shelf	Shelf sets	L = 320 mm	20 kg	038 017 05	Quick RFQ
A set for 28 mm shelf at a 30° Sloped shoe / display shelf	Shelf sets	L = 300 mm	20 kg	038 018 05	Quick RFQ
Stop for shelf at a 30° angle Front stop for sloped shelves	Shelf sets	—	—	038 013 05	Quick RFQ

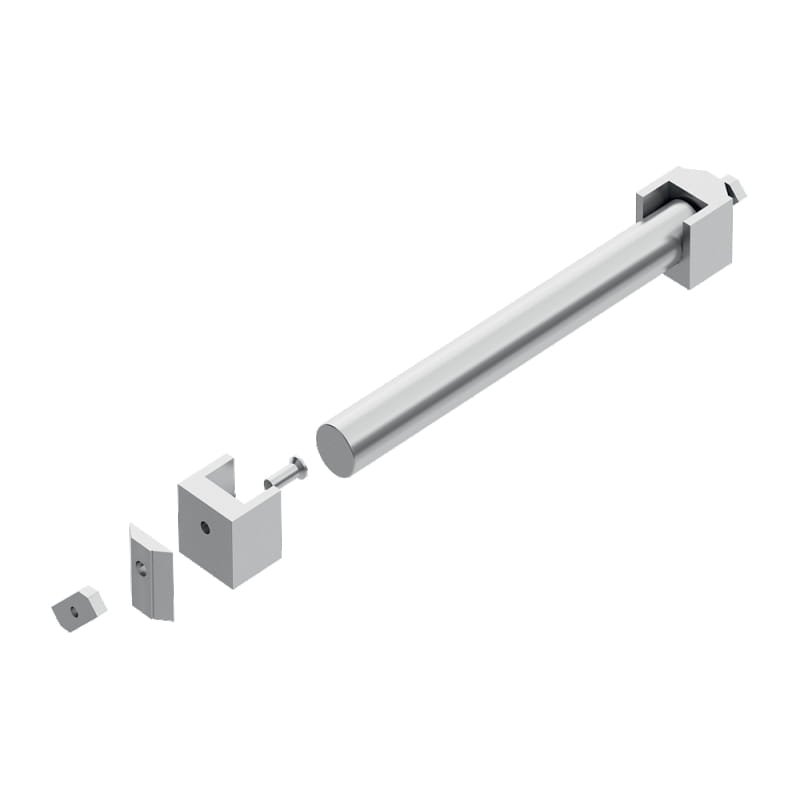

A set for clothes rail Rail not included; Häfele, Peka, Vibo compatible	Clothes rail	—	—	038 008 05	Quick RFQ

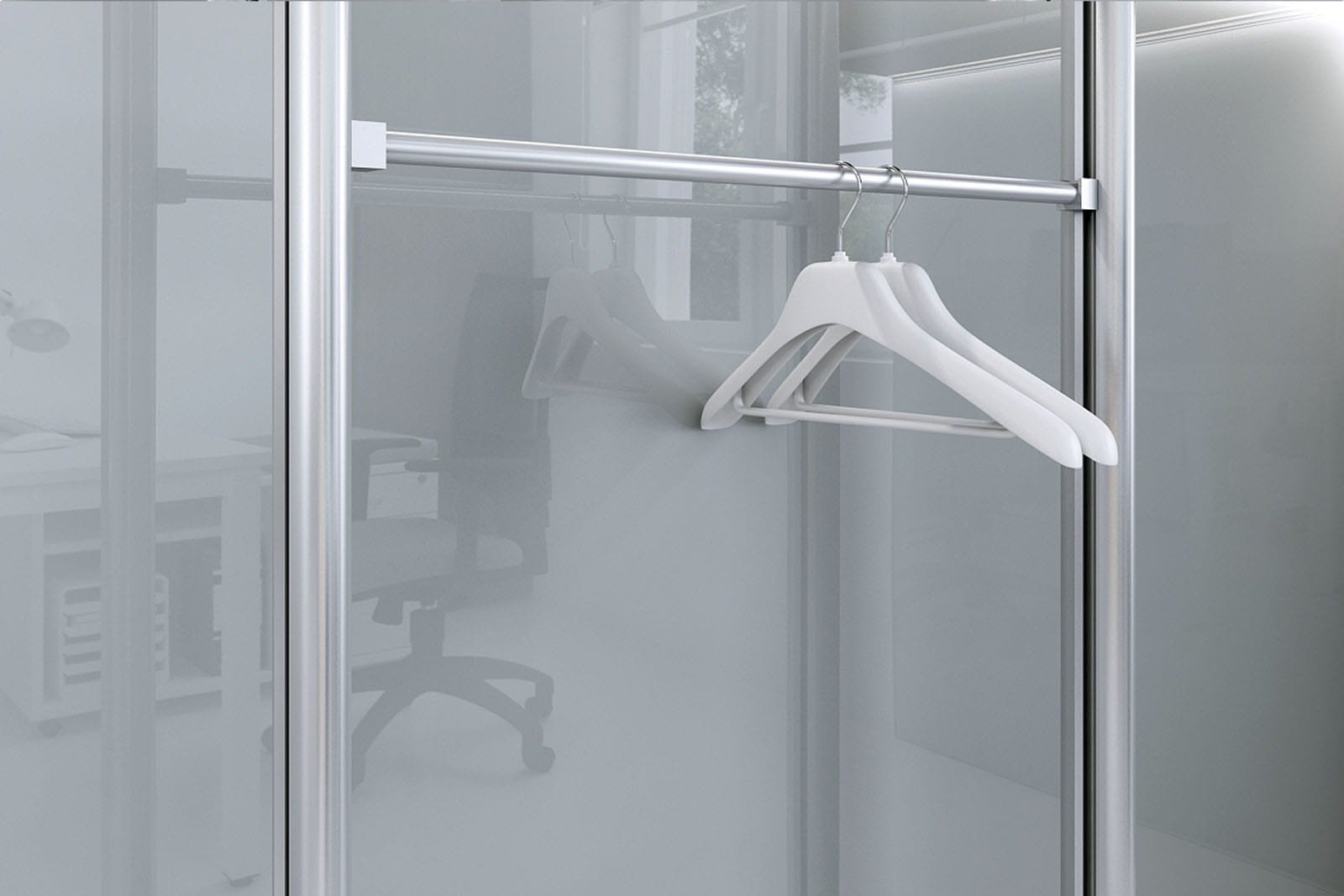

Clothes rail Ø22 C-30S Tube length X − 20 mm; length on request	Clothes rail	L = 3000 mm	—	036 012 15	Quick RFQ

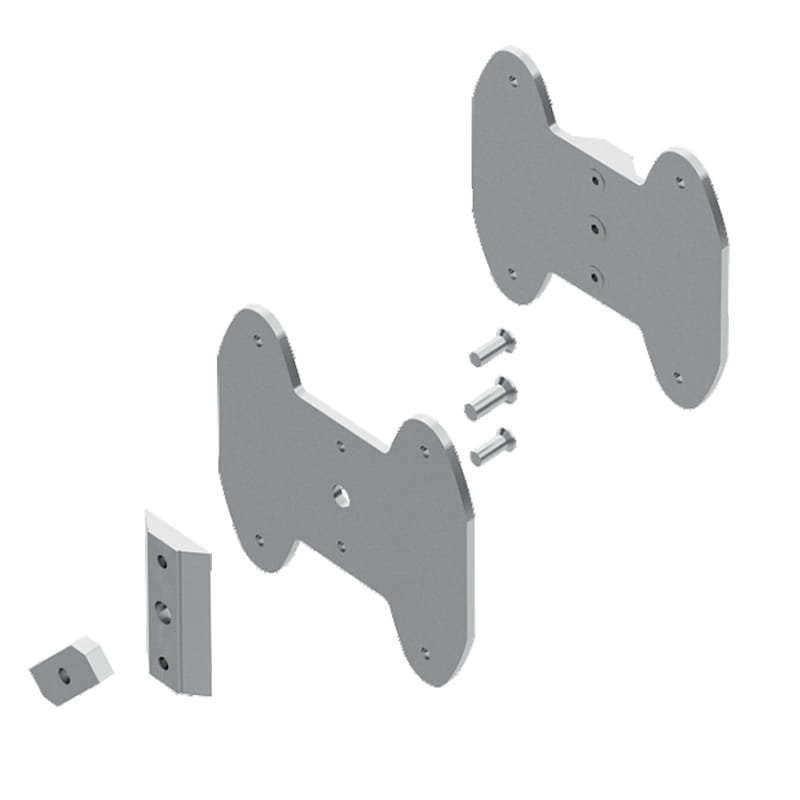

Adapter for tie hanger For Häfele / Peka / Vibo hangers	Clothes rail	—	—	—	Quick RFQ

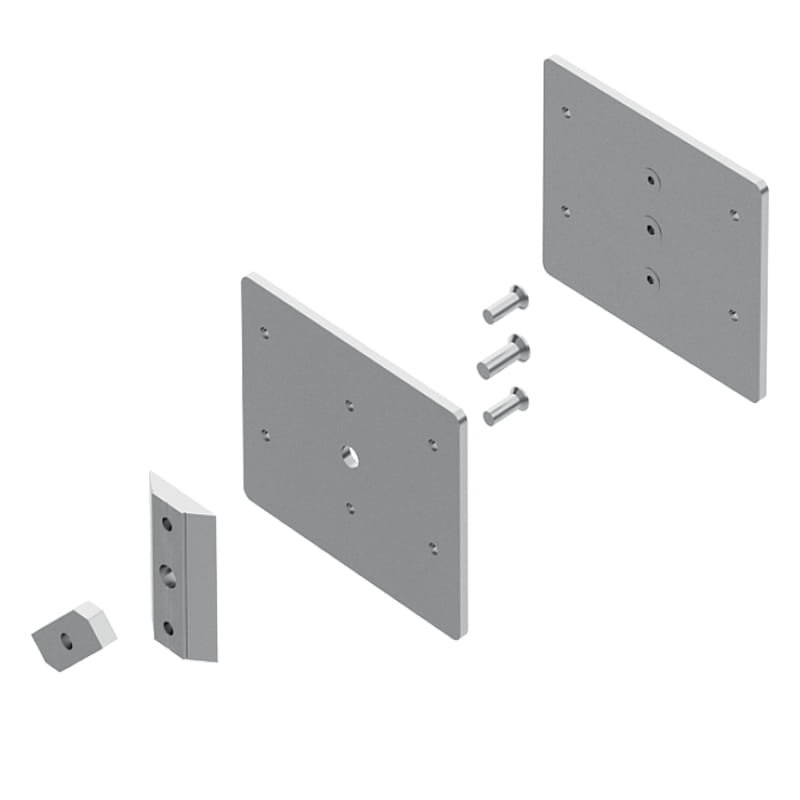

Adapter for tie and belt hanger For Häfele / Peka / Vibo hangers	Clothes rail	—	—	—	Quick RFQ

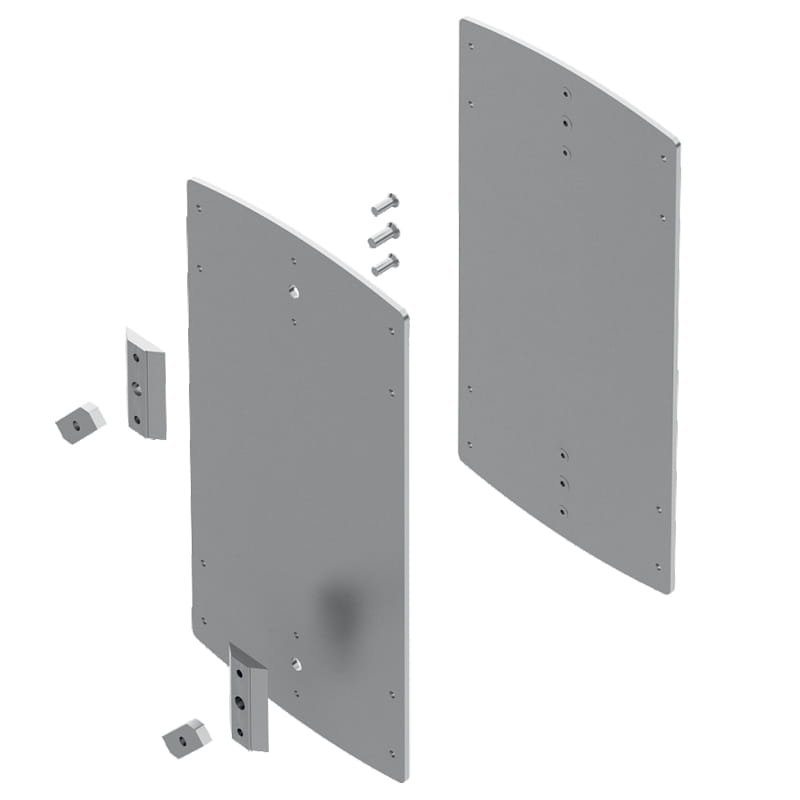

Adapter for shirt hanger For Häfele / Peka / Vibo hangers	Clothes rail	—	—	—	Quick RFQ

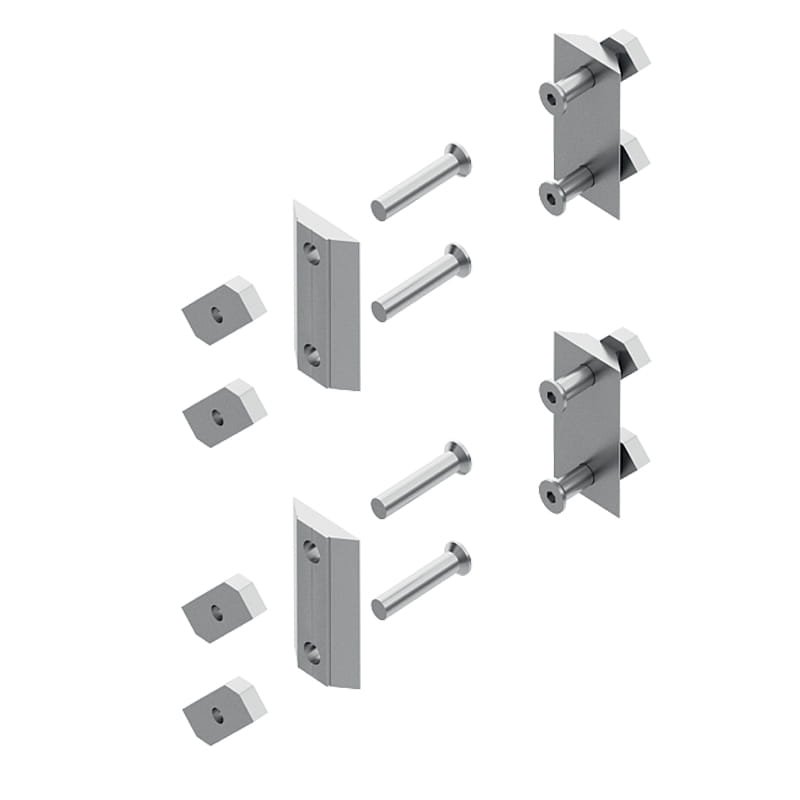

A set for cabinet fixings Max. cabinet body width 900 mm	Cabinet fixings	L = 900 mm	50 kg	038 009 05	Quick RFQ

* External version with concealing profile. Clothes rail set 038 008 05 does not include rail 036 012 15; rail length on request. Loads are for evenly distributed weight across the whole shelf.

Processing and assembly

Four steps to a finished wall

Measure X

Set the internal pillar spacing. Housing, board, glass and tube lengths follow the X-rule.

Cut and fit pillars

Cut the supporting profile, fit the construction element for floor, wall or ceiling and level on C-30S feet.

Mount shelf sets

Clip in sets for 18 or 28 mm board, 8 or 10 mm glass, 30° sloped shelves, clothes rail or cabinet body.

Conceal

Snap the concealing profile over the outer face and close the pillar with the plug.

Downloads and videos

Technical files for the Shelving System

Catalogue pages 36 – 41, Shelving SystemDownload PDF Pillar cross-section and construction elements (DWG)View files Assembly instructionsDownload PDF

Finish samples C-0 / C-35Request HÄFELE, PEKA, VIBO adapter listView files Project inquiry supportRequest files

Project support

Send us the wall. We return the component list.

Give us room height, X spacing and shelf types. A technical advisor matches construction elements, shelf sets and finishes and quotes the order.

We reply within two working days
C-0 and C-35 samples shipped on request
Drawings reviewed by a technical advisor

Shelving System applications

Shelving System in practice

QD2 Kitchen

Open shelving beside the worktop.

QD16 Walk-in wardrobe

Floor-to-ceiling pillars with rails and shelves.

QD10 Bathroom

Black pillars and glass shelves in a bathroom.
