Aluminium system · IQube 16 / 22

IQube 16 & 22 system

Square aluminium rods and profiles in two sizes, joined by dedicated connectors. One kit of parts builds a wall rack, a suspended shelf module, a free-standing frame or a MESH-filled cabinet.

Request a quote View programme

Overview Programme Processing & Assembly Downloads & Videos

EVA Wall System Handleless

The system

A square rod, and the joints that carry it

IQube is built from square aluminium sections in two sizes — 16 mm and 22 mm — as plain rods, as profiles, and as profiles that already carry one or two shelves. Dedicated connectors let simple shelves and more complex structures be built from the same system.

The modules stand on adjustable feet, hang directly on the wall with a suspension bracket, or work with the ZOBAL Wall System. Shelves can be finished with tempered glass or board panels, keeping the structure practical while preserving a clean, architectural look.

■ Mat black C-35

□ Natural aluminium C-0

ZOBAL — Product Family: IQube 16 / 22 (Pro)

Hangs on the wall, or on the Wall System

A suspension bracket fixes the frame straight to the wall, so a module can sit on its own as a display box or repeat down a run. Where a Wall System rail is already in place the same frame mounts to it, and the two profile families read as one structure.

Rated, not decorative

An IQube 16 shelf over a worktop carries up to 20 kg. Where a frame is filled with steel MESH, the permissible load of the net placed horizontally is 3 kg.

Glass or board, in the same frame

Shelf profiles are made to take tempered glass or board panels. The profile with one shelf and the profile with two shelves cover most positions without extra fittings; plain rods and profiles make up the rest of the structure.

MESH as an infill

A frame can be filled with a steel MESH in black. The mesh fills vertical and horizontal spaces, which is what turns a row of open frames into the closed, ventilated cabinets used in the QD15 living room.

Profiles

Which section the frame is made from

Four square sections carry the system. Pick by span and by whether the profile should already hold a shelf.

16 × 16 mm

Square rod 16

Solid square rod — the lightest member, used where a frame edge carries no shelf.

Shelves carried · None

16 × 16 mm

Square profile 16

Hollow square profile for frame verticals and rails at the smaller section.

Shelves carried · None

22 × 22 mm

Square profile 22

The larger section, for wider spans and taller free-standing frames.

Shelves carried · None

16 or 22 mm

Profile with shelves

Profile supplied already carrying one shelf, or two — no extra fittings.

Shelves carried · One or two

Applications

Four rooms, one kit of parts

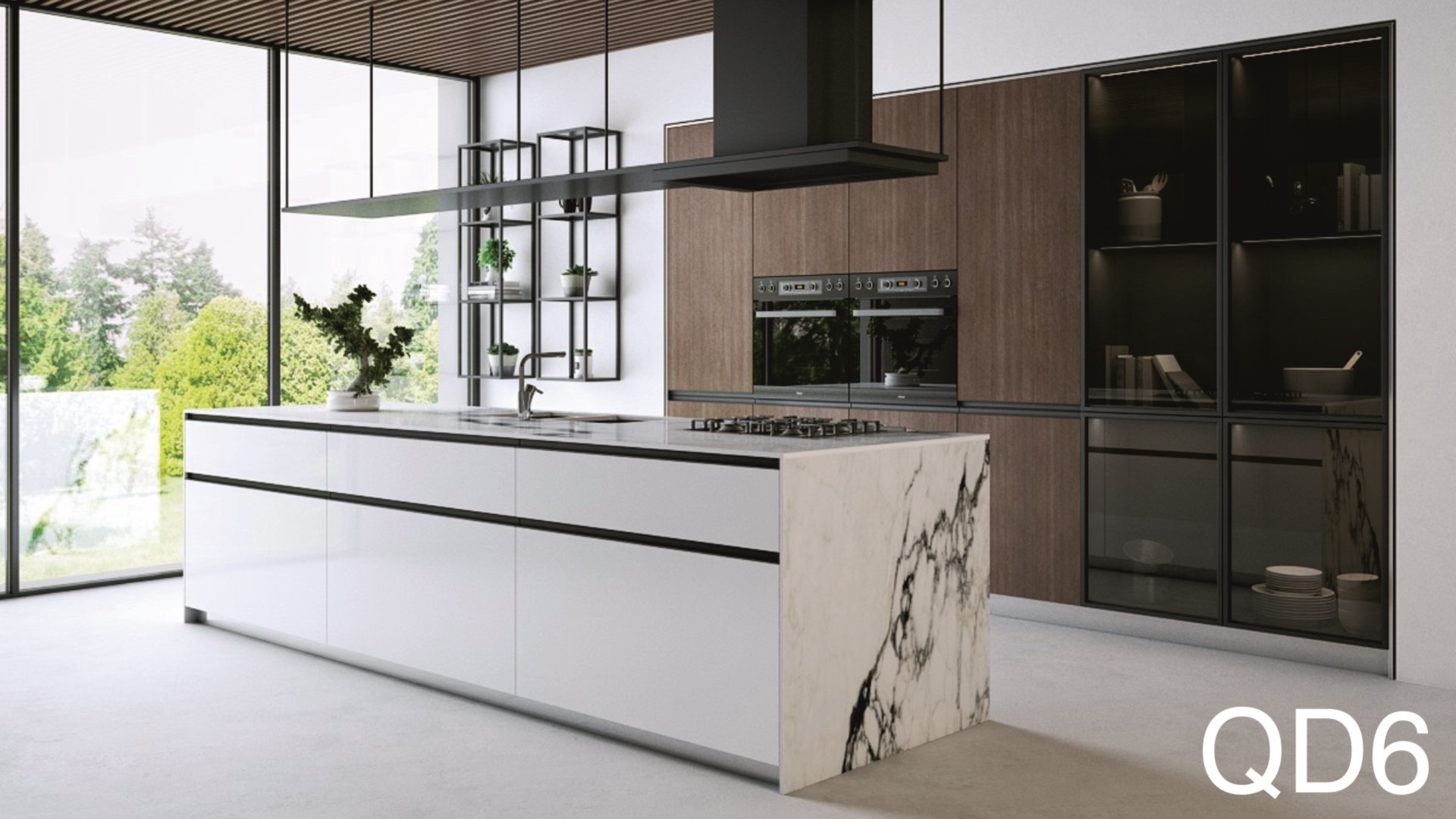

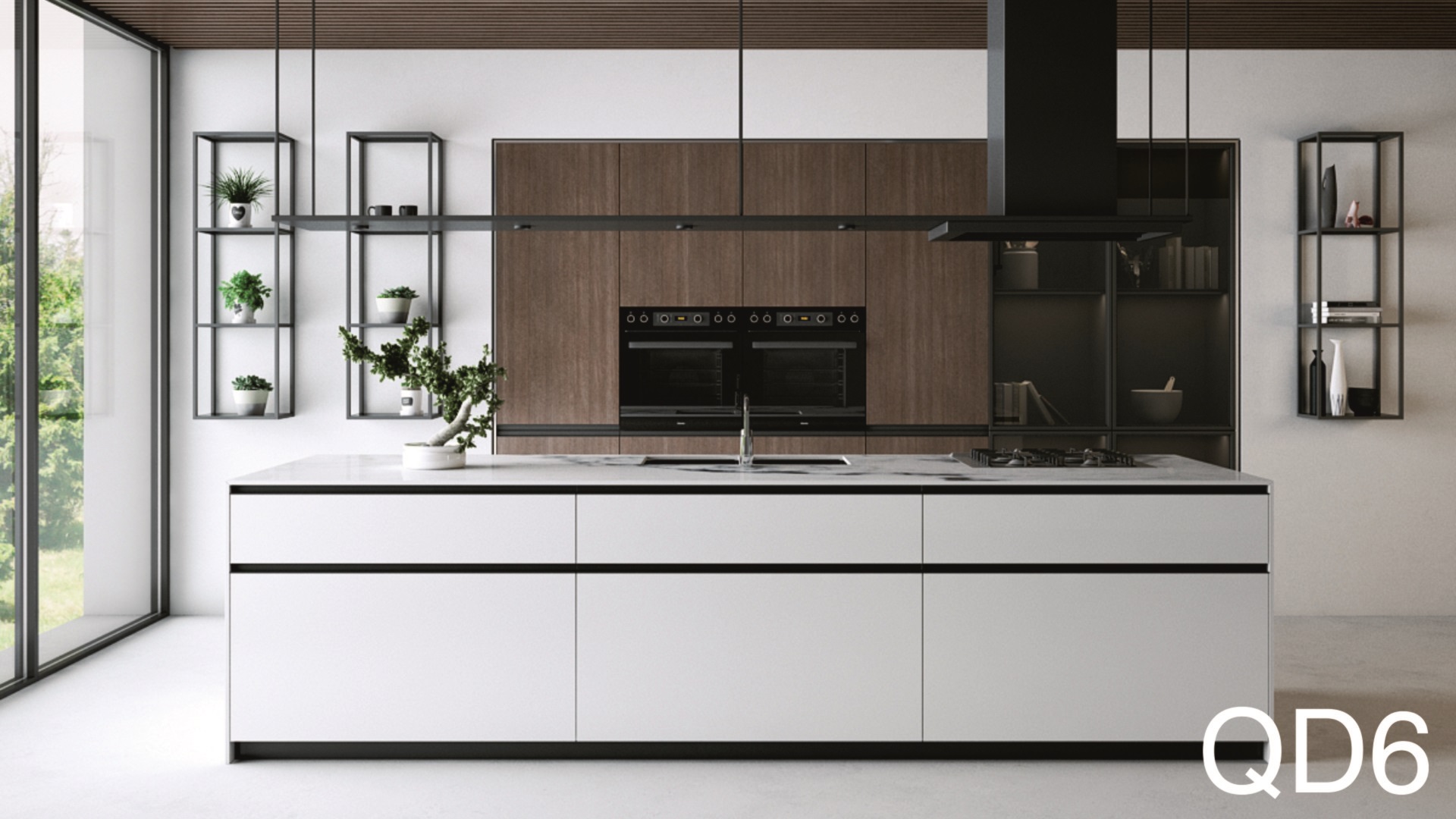

An island

is a multifunctional place that is often the central place of the kitchen. And although this layout is often attributed to large interiors, in practice there are many solutions that will also work in these slightly smaller kitchens. There are many advantages and functions of the kitchen island; our systems will help accentuate them all. The combination of marble with handleless profile C in black anode C-35 is an elegant and timeless combination.

The advantage of the handleless system is quick assembly, durability of the anodized coating and the ability to adapt it to many different arrangements. Elegant Z-23 frames in black with smoked glass subtly hide kitchen appliances. The whole is complemented by the IQube 16 shelving system mounted as a shelf on the wall - a perfect place to store, for example, cookbooks.

Scene

QD6

Room

Kitchen

With

Handleless profile C · Z-23 frames

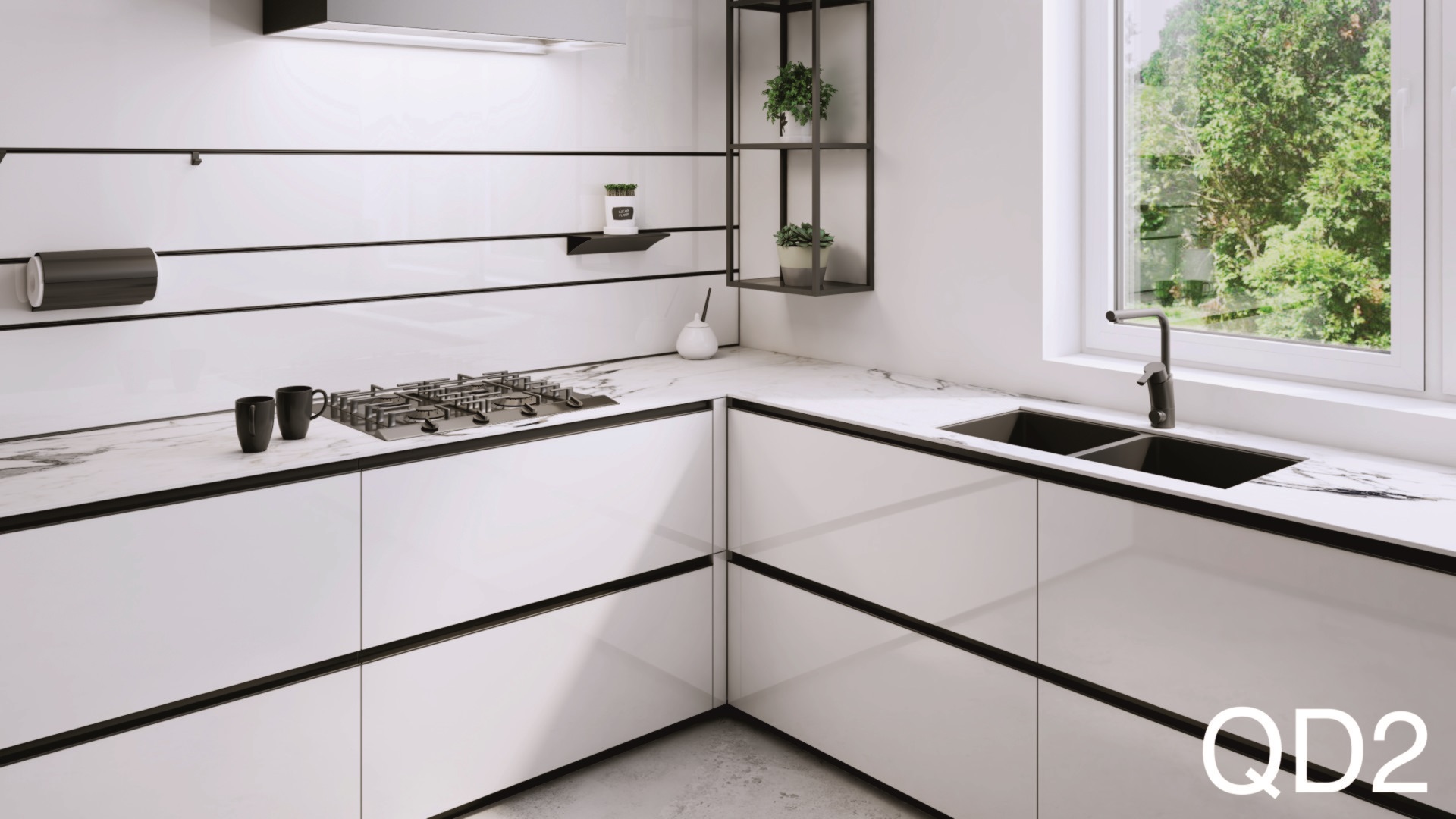

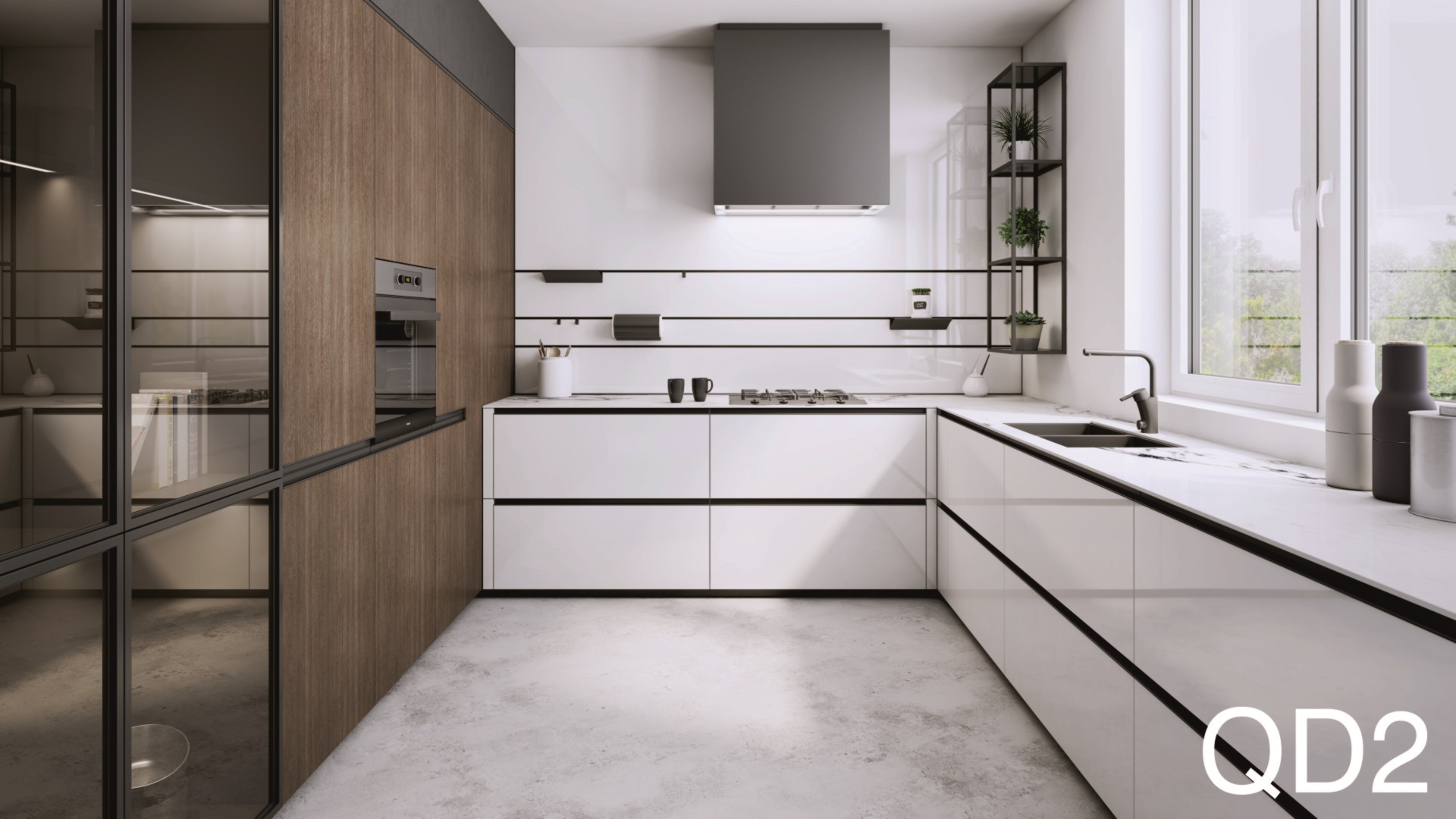

Small kitchen with wall system

Arranging a small and functional kitchen is quite a challenge. In this case we suggest using a uniform color of the fronts, which gives a sense of space and elegance. The black Handleless System, although it contrasts with the color of the fronts, is subtle and does not take up much space. The Wall System in this case is a combination of white glass and black profiles. Such a solution matches the fronts and offers full freedom of space reorganization.

The whole is completed with a wall offering plenty of storage space. Wooden finish fronts with a warm shade look exceptional next to Z-23 fronts with air hinges and brown-smoky glass. The IQUBE 16 over the countertop harmonizes perfectly with the profiles of Wall System and Handleless System and it is a great help in the kitchen. Its maximum load capacity is up to 20 kg.

Scene

QD2

Room

Kitchen

With

Wall System · Handleless · Z-23

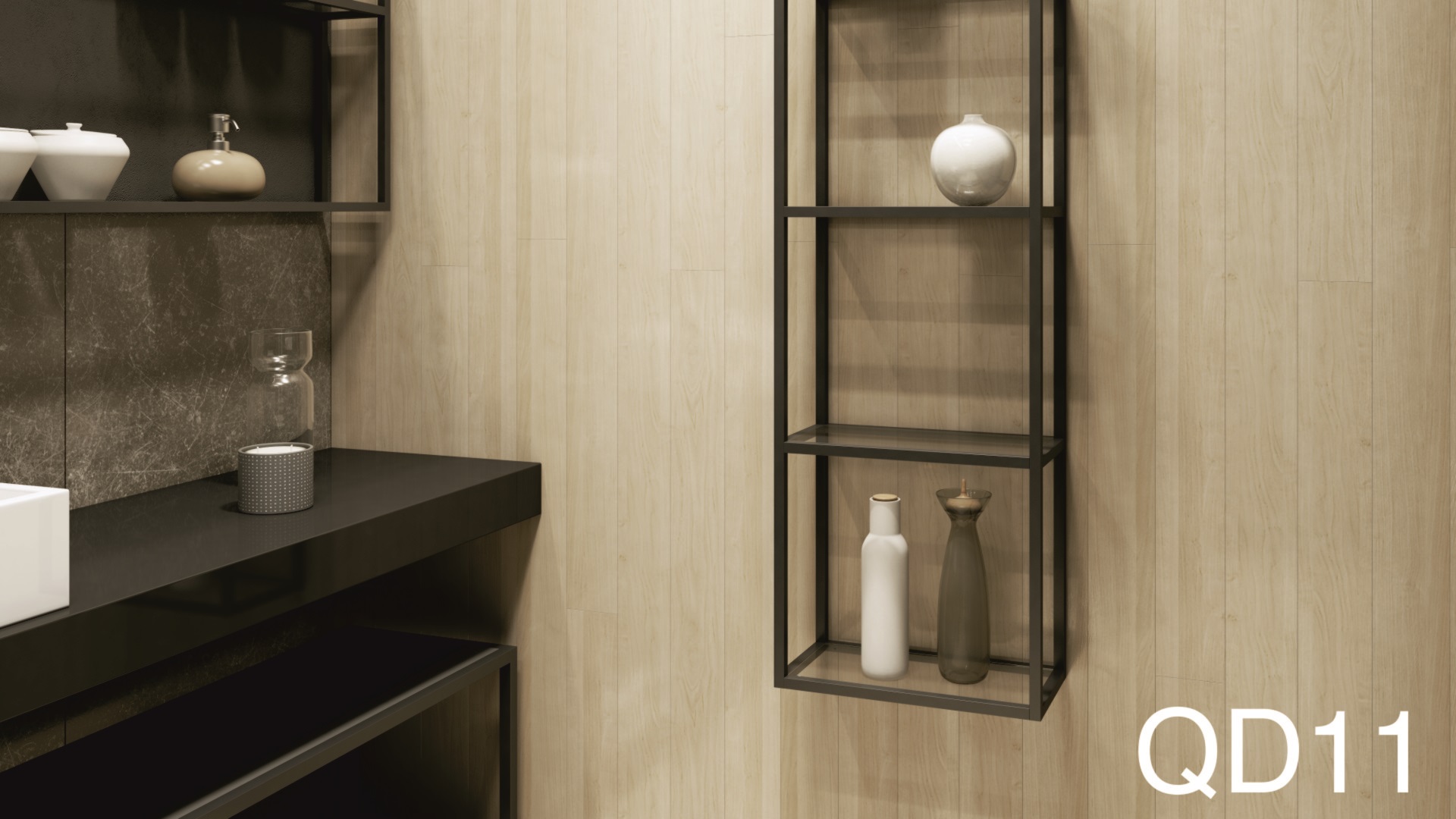

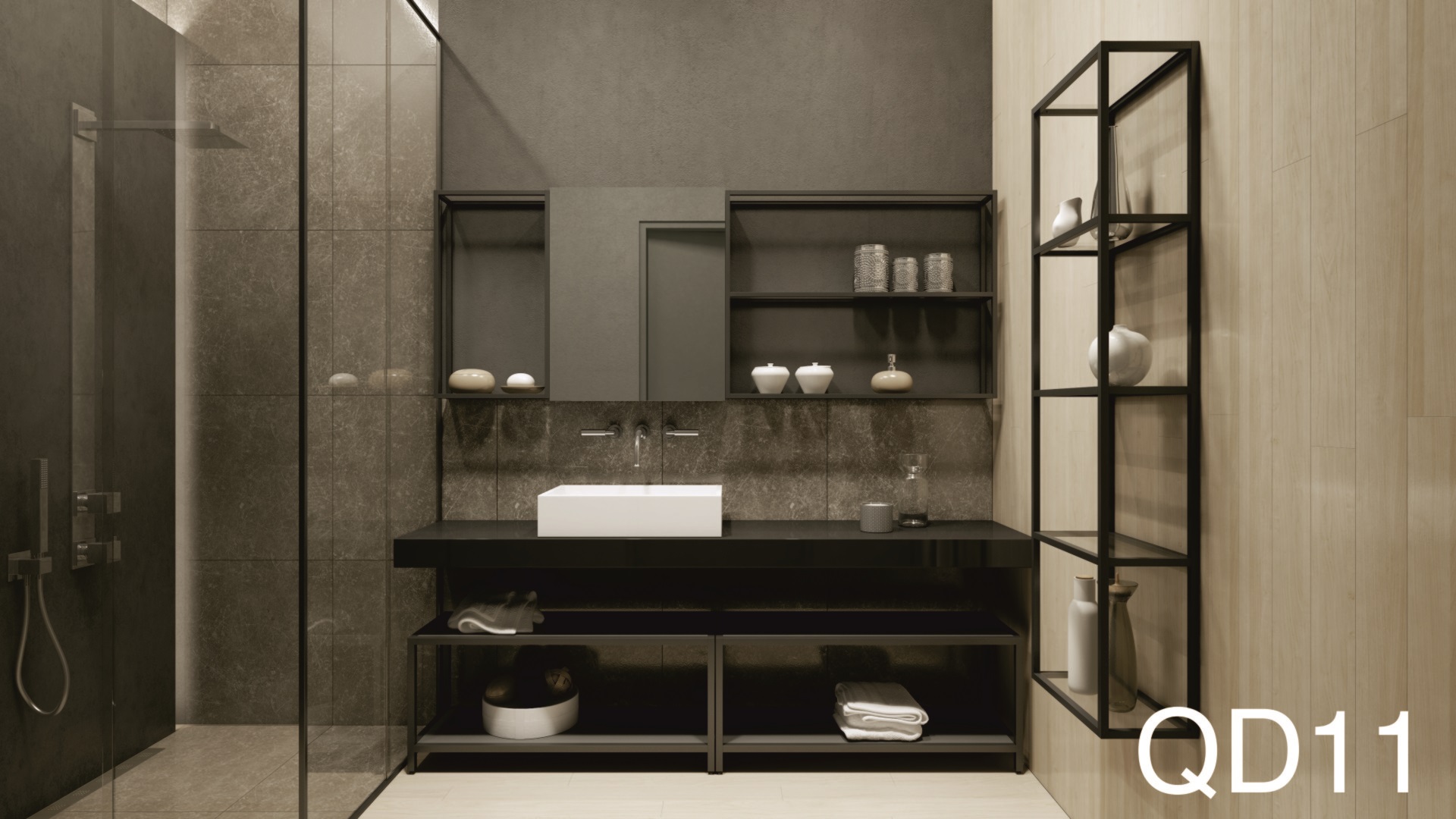

Practical bathroom

The IQube 16 and IQube 22 systems bring lightweight, modular storage into the bathroom. In this arrangement, the profiles work below the countertop, as wall-mounted racks by the mirror, and as a suspended shelf module. Dedicated connectors allow simple shelves and more complex structures to be built from the same system.

The modules can stand on adjustable feet, hang directly on the wall, or work with the ZOBAL Wall System. Shelves can be finished with tempered glass or board panels, keeping the bathroom practical while preserving a clean, architectural look.

Scene

QD11

Room

Bathroom

With

IQube 16 and IQube 22

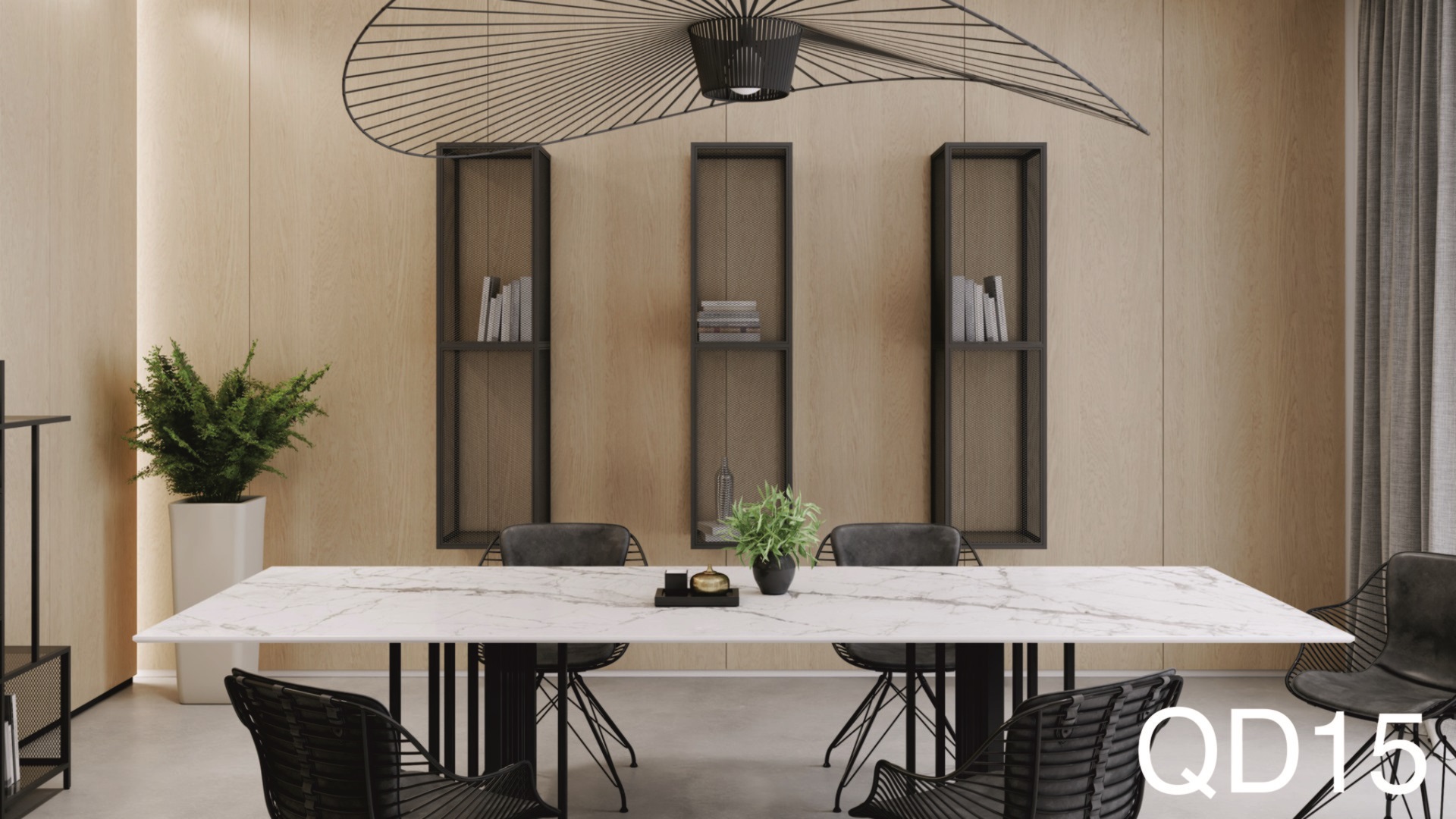

Living room

In search of unique and functional applications for its products, Zobal wants to present its customers with an innovative solution for the IQube 16 and 22 systems. We give you the opportunity to create original shelving systems by adding a frame filled with a steel MESH in black.

This solution allows the use of MESH to fill vertical and horizontal spaces and it will be successfully used in various configurations. It is important to notice that the permissible load of the net when placed horizontally is 3 kg.

Scene

QD15

Room

Living room

With

IQube 16 and 22 with MESH infill
