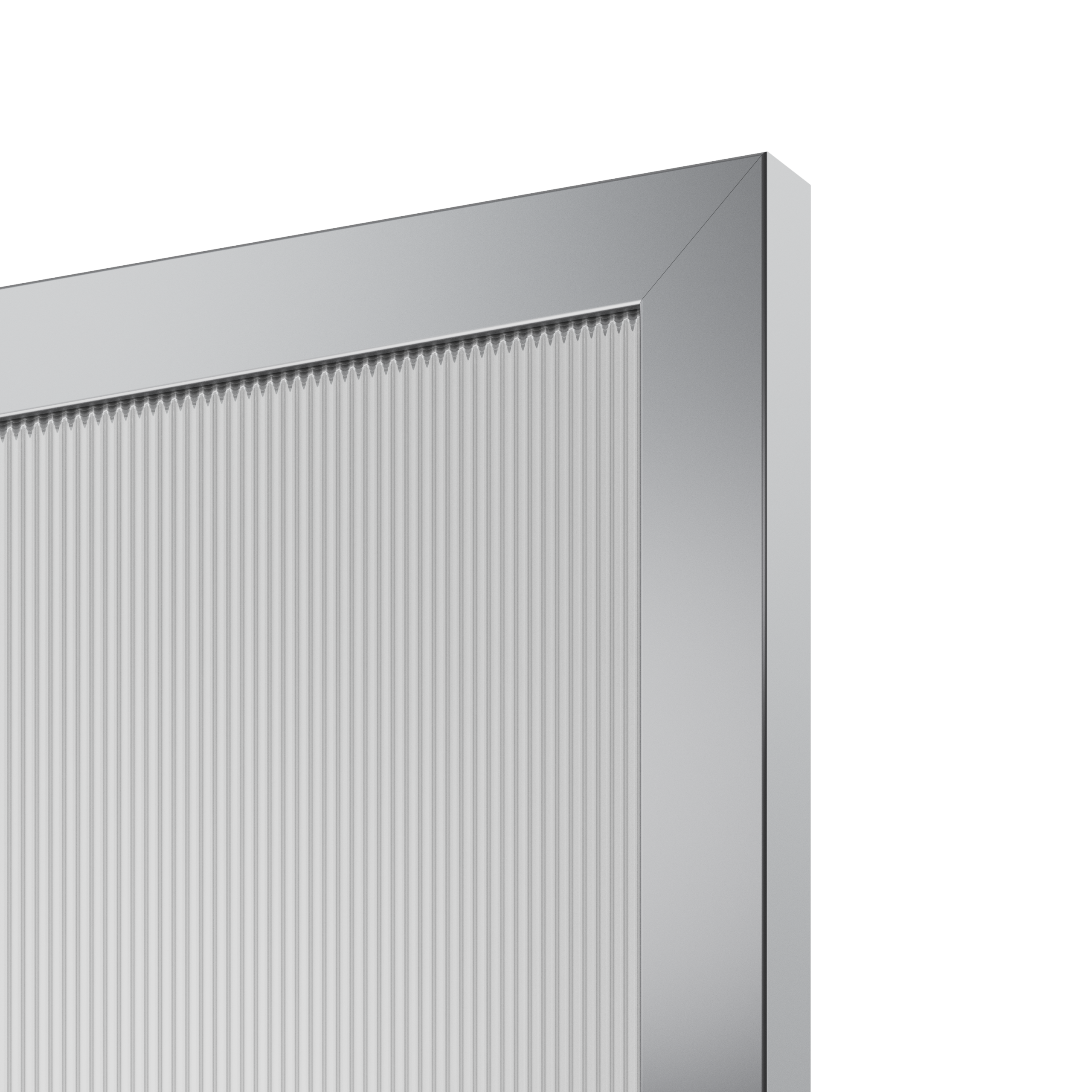

Frame profile Z-26A
Vendor's code: 02004505
ask about productnr 020 045 05
- The profile is similar in shape to the Z-23 profile
- The profile is suitable for constructing frames using AirSalice hinge connectors (020 040 00 + 020 041 00) and connectors for narrow frames: 7004.
- Depending on the connectors used, you can use AirSalice concealed hinges or hinges for narrow frames from BLUM, Hettich, or other manufacturers designed for narrow aluminum frames.
- The thickened walls make the profile particularly suitable for designing frames with larger dimensions: 2700x700 and even 3200x600
- The thick walls allow for threaded holes to be drilled directly into the profile wall—recommended thread sizes are M4 and M5.
- Recommended handles: U9, U92, U922, and U1, U2, U3, U4, U5, U6, U8.
- The glass cutout is 45 mm in height and width.
Furniture fronts
nr 020 045 05
- The profile is similar in shape to the Z-23 profile
- The profile is suitable for constructing frames using AirSalice hinge connectors (020 040 00 + 020 041 00) and connectors for narrow frames: 7004.
- Depending on the connectors used, you can use AirSalice concealed hinges or hinges for narrow frames from BLUM, Hettich, or other manufacturers designed for narrow aluminum frames.
- The thickened walls make the profile particularly suitable for designing frames with larger dimensions: 2700×700 and even 3200×600
- The thick walls allow for threaded holes to be drilled directly into the profile wall—recommended thread sizes are M4 and M5.
- Recommended handles: U9, U92, U922, and U1, U2, U3, U4, U5, U6, U8.
- The glass cutout is 45 mm in height and width.
