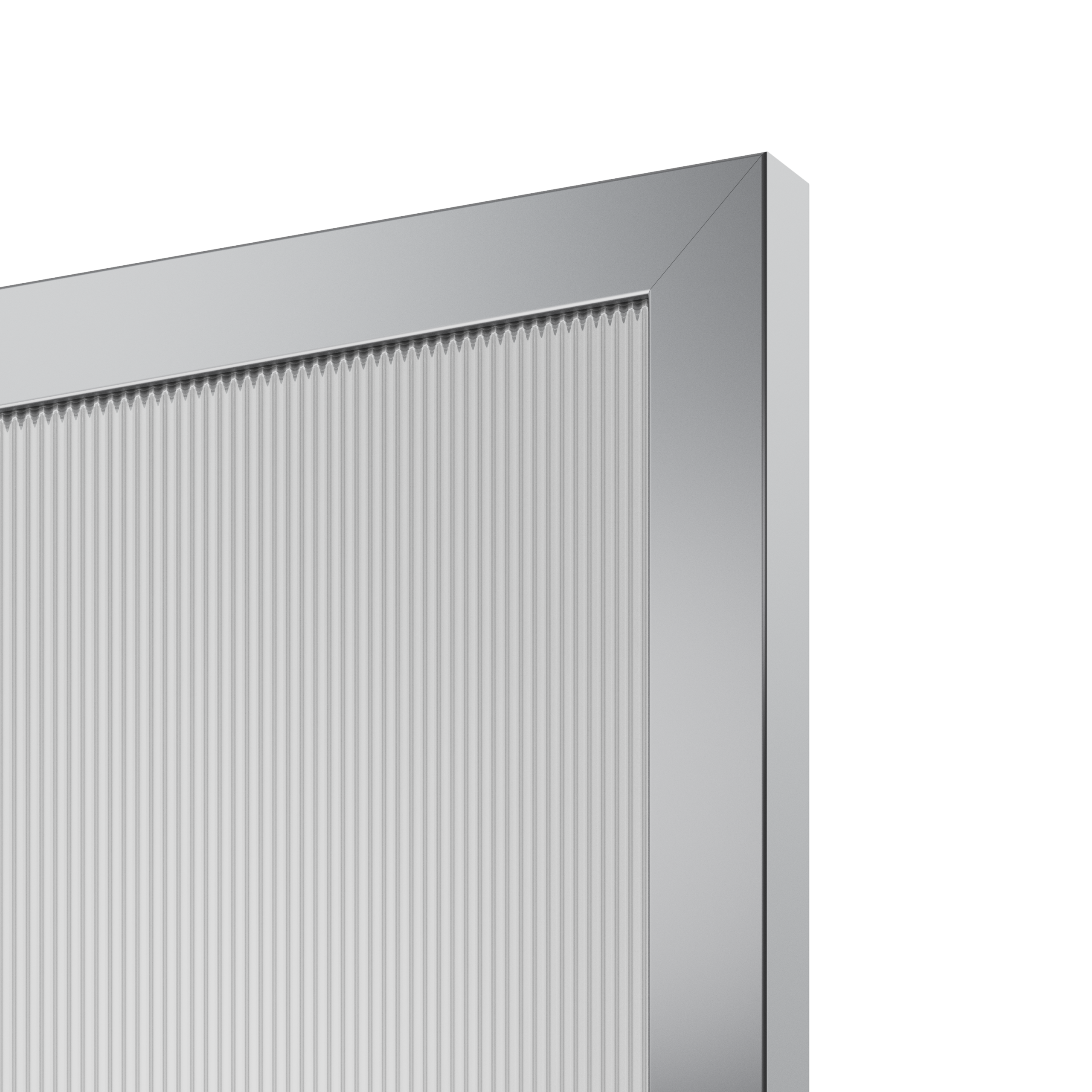

Frame profile Z-23A
Art. no. 020 038 05
Door panel engineered for Salice Air concealed hinge hardware; compatible with standard Blum and Hettich hinges as well ,
Max. door panel dimensions (Salice Air concealed hinges): 600 x 2700 mm (23-5/8" x 106-5/16"),
Max. door panel weight (Salice Air concealed hinges): 20 kg (44 lbs),
For cabinet carcass thickness under 25 mm (1"), Salice Air concealed hinges require a ZOBAL adapter (Art. No. 010 007 05)
The Z-23A door panel prepped for Salice Air concealed hinges requires no additional mullions or stiffeners
The Z1-S muntin fits this fronts (No. 020 025 05)
DownloadArt. no. 020 038 05
